Linear Indoor-Outdoor




Price range, $12,499-$13,999. This includes the Linear engine, window kit, and burn media. The window kit and burn media need to be ordered separately.

Enjoy the natural warmth of a real gas fire inside and the flickering ambience outside

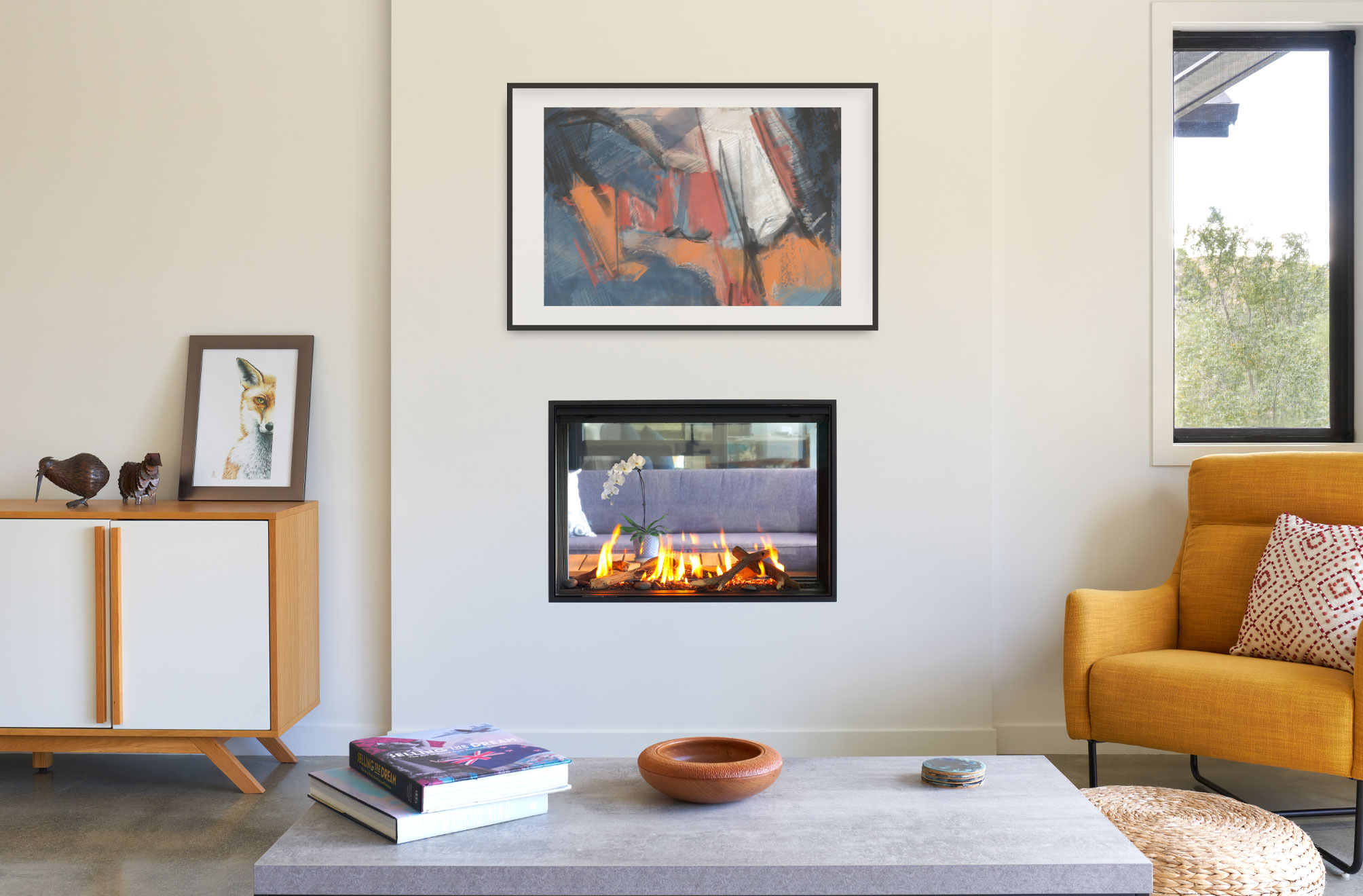

Blur the line between outdoors and indoors with the stunning Rinnai Linear Indoor-Outdoor collection. Enjoy the beautiful warmth from the flickering flames indoors and the additional ambience when entertaining outdoors.

The Linear window assembly allows a double-sided Linear model to be installed in an external wall. The fires have been modified to allow for a window installation. Ensure you have ordered the correct model and window kit by referring to the Technical Specifications below.

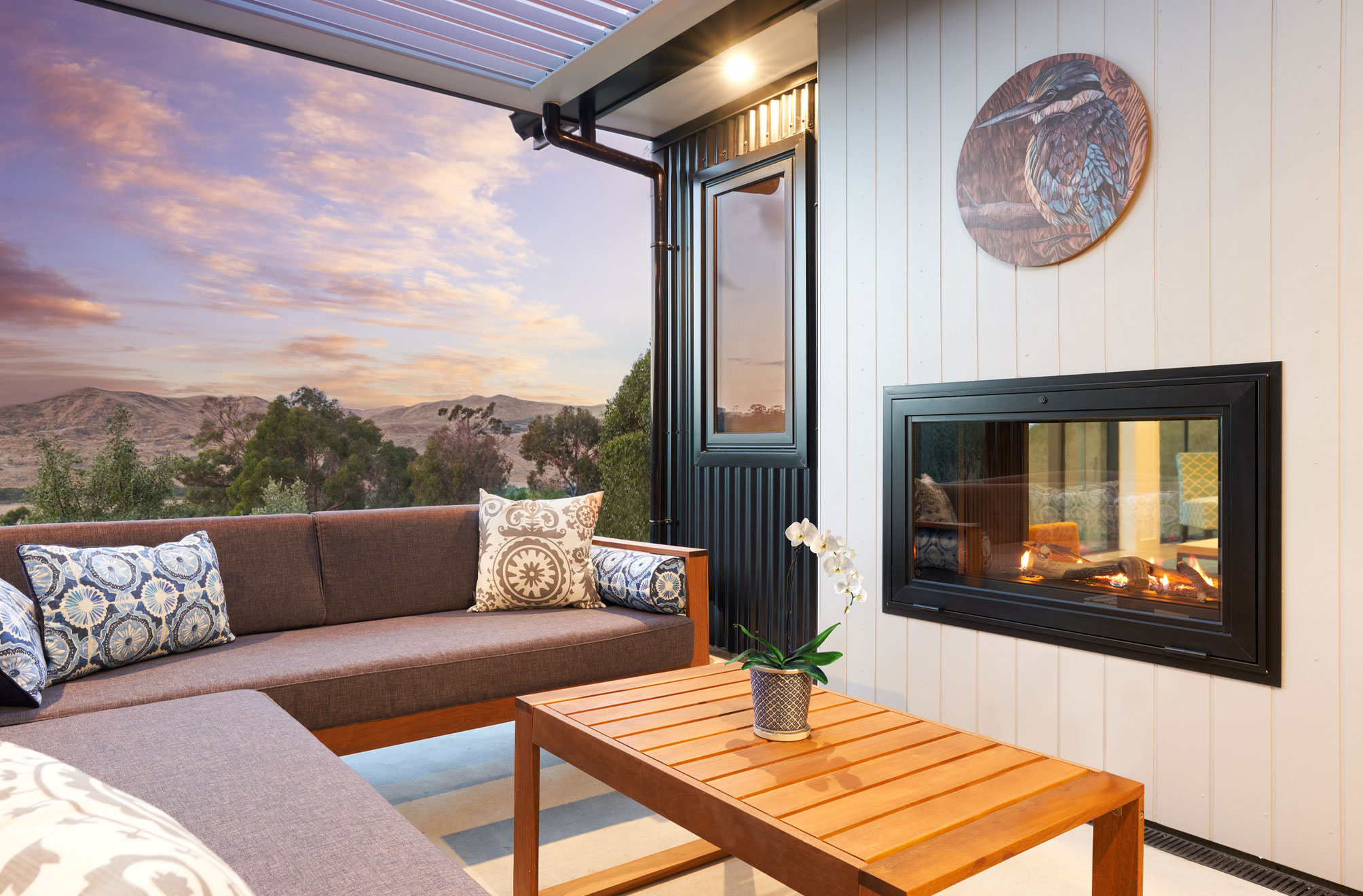

The outdoor side of the fireplace, due to the window being double glazed, will deliver radiant heat only.

Read More

Product Details

The Linear Indoor-Outdoor is unable to be retrofitted to an existing Linear double sided fire due to the customisation needed to fit a window—a new fire would be required.

Please note: These fires are made to order—lead time up to five weeks.

Technical Specifications

Order codes
Model NG code LPG code Window kit
Linear 800 FlameTech + window RHFE0800WF1N RHFE0800WF1L R2930
Linear 800 designer log set + window RHFE0800W1N RHFE0800W1L R2930
Linear 1000 + window RHFE1000W1N RHFE1000W1L R2940
Linear 1000 FlameTech + window RHFE1000WF1N RHFE1000WF1L R2940
Linear 1500 + window RHFE1500W1N RHFE1500W1L R2950
Window opening
  • The 800 window opens sideways, left or right—drain holes top and bottom allow for this.
  • The 1000 / 1500 window opens downwards.
Window kit contents
  • Black aluminum frame, double glazed panel
  • Window key cellotaped to glass
For a successful installation

It's important that the proposed window placement is checked to make sure the fire will fit. For example, enough room underneath for the Linear to be installed, and just as important, that the fire won't be installed too high up the wall. The fire needs to be sized to match the window height.

Use the Indoor-Outdoor window assembly installation instructions (within Downloads) in conjunction with the Linear installation guide, both supplied with the fire, as this contains important framing dimension and clearance details.


Supplier Declaration of Compliance details:

  • Declaration number: DEC-000001435Z1L4
  • Cert number: 8752
