Linear 800 with designer log set


Designed and made in New Zealand

Rinnai's designers took their inspiration from Aotearoa's unique landscapes. They hand selected driftwood washed up on our beaches, and stones to match those shaped by our rivers and tides. These were painstakingly recreated as perfectly lifelike ceramics.

This is a beautiful-looking fire, thanks largely to its impressive flame height and Rinnai's realistic logs recreated to look like the real thing. To give you the very best view, the glass has an anti-reflective coating, which ensures the view of your fire is a pristine as possible.

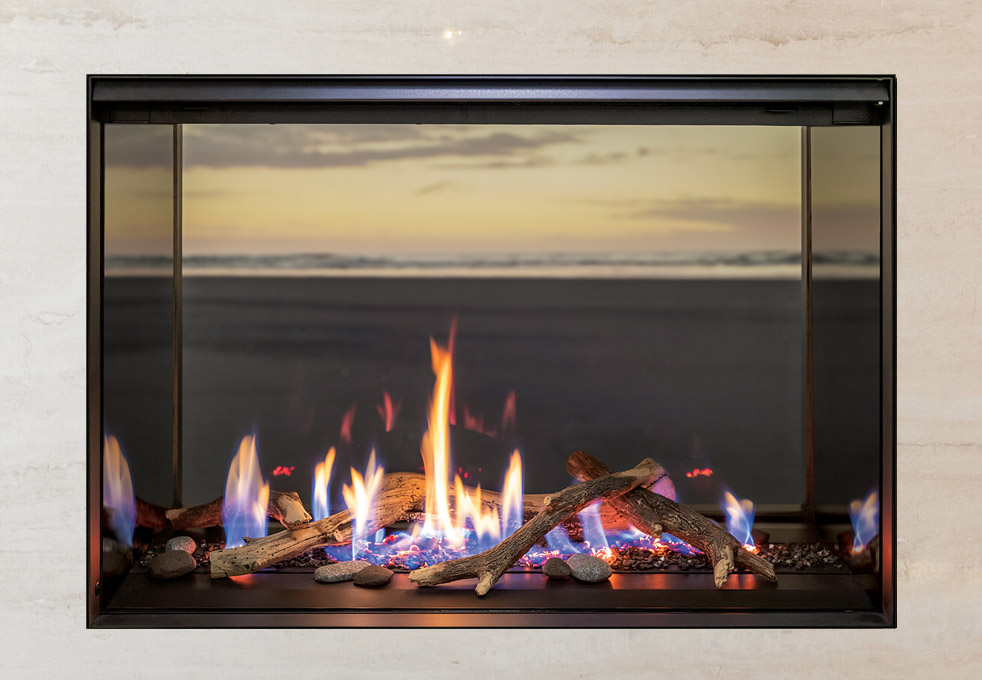

All fires in the Linear Collection are available in single and double-sided variants.

Read More

Design Your Fire

Burn Media

Product Details

Suitable for indoor installations only.

Ideal for living rooms and open plan areas. The versatile power flue system makes for easy installation in almost any living space, including bedrooms.

Heating areas
- Upper North Island, up to 123 m²
- Central and lower North Island, up to 85 m²
- South Island, up to 71 m²


IMPORTANT: Gasfitters and builders
Linear models have adjustable wallboard support rails. The gasfitter will adjust these based on the thickness of the wall lining. It's important the gasfitter gets the wall lining information from the builder. If this is not done the wall lining will not sit flush (if a flush installation) and the cavity can overheat causing the fire to cut out.

BUILDERS: Due to the heat from the fire ensure a 50 mm clearance around the unit, including the rear (if a single-sided model). This information is included in the framing dimension pages of the installation guide. Use this in conjunction with the 'Linear additional wall lining detail' to ensure a successful installation.

Technical Specifications







* Will vary according to gas type and flue configuration, figures published are for NG using a long flue
Gas type

Available for Natural Gas or LPG, specify at the time of purchase.

Convection fan

2-speed fan. Heat is distributed from the top of the appliance.

Data plate

The base of the combustion chamber, LHS, on the convection fan access panel.

Gas connection

½ " BSP, the gas supply terminates inside the heater—lower left-hand side.


Continuous spark electronic ignition.

Noise level

37-45 dB(A)


Power flue. Inner 50 mm, outer 70-80 mm. Appliance MUST be installed with a Rinnai flue system.

Power consumption
  • High 50 W
  • Standby less than 8 W

The Linear has a 1.5 m cord with a three pin plug supplied. The power cord passes through a slot in the right hand side of the appliance.

Safety devices

Flame failure sensing system, pressure relief, overheat safety switch, air temperature sensor, thermal fuse, overcurrent fuse, and spark detectors

Temperature control

The Linear can be operated using the basic infra-red remote, or for more features, such as timers and thermostatic control, using Rinnai's Wi-Fi fireplace controller app available from the Apple App store or Google Play.


100 kg

General clearances

The minimum clearances listed below are measured from the edge of the glass.

  • Above - 400 mm
  • Sides - 400 mm (includes side walls)
  • In front - 1000 mm

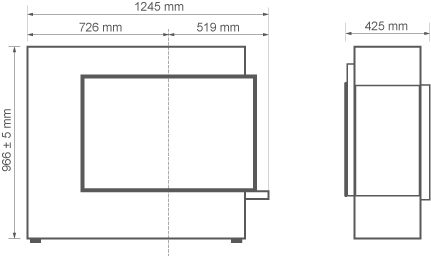

  • These are the unit dimensions only, not the framing/cavity dimensions
  • The centre of the glass is NOT the centre of the appliance
  • Viewable glass dimensions 800 x 505


Energy Safety Supplier Declaration of Compliance number - 1907520195

Market information
  • Released Jul 2019
  • Discontinued Aug 2023
