Demand Rapid recovery storage system

Overview

Smaller commercial rapid recovery storage systems

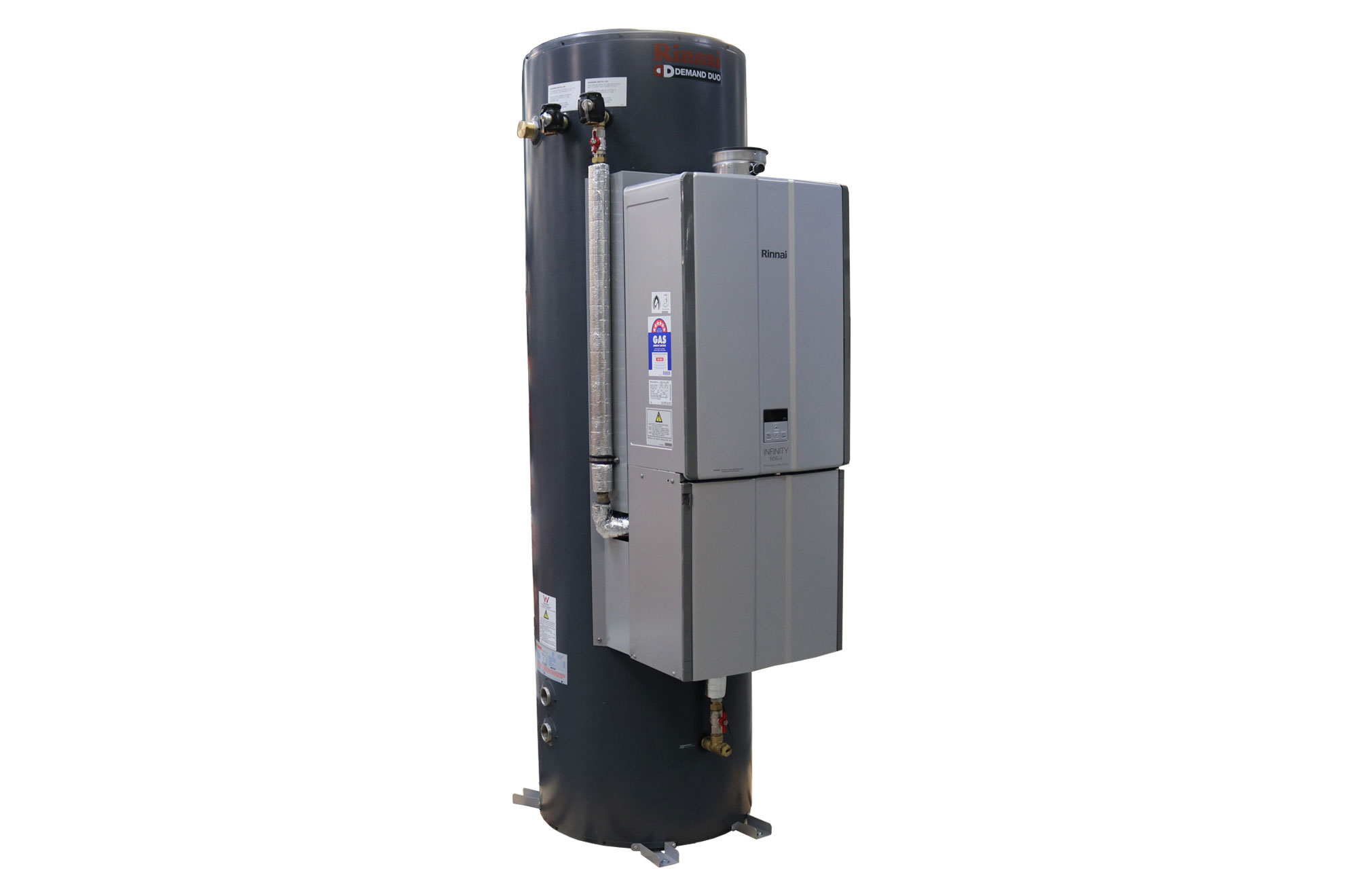

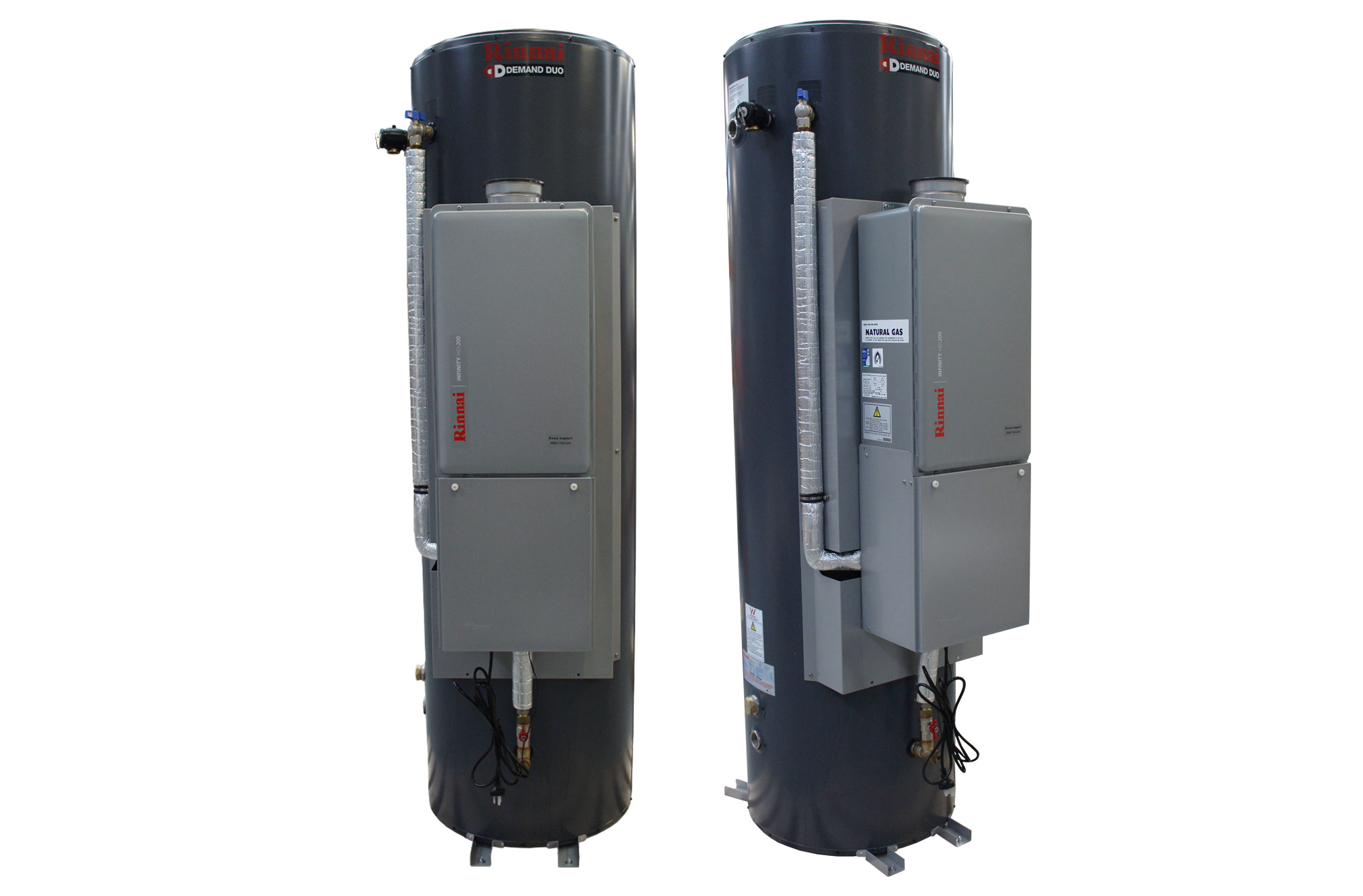

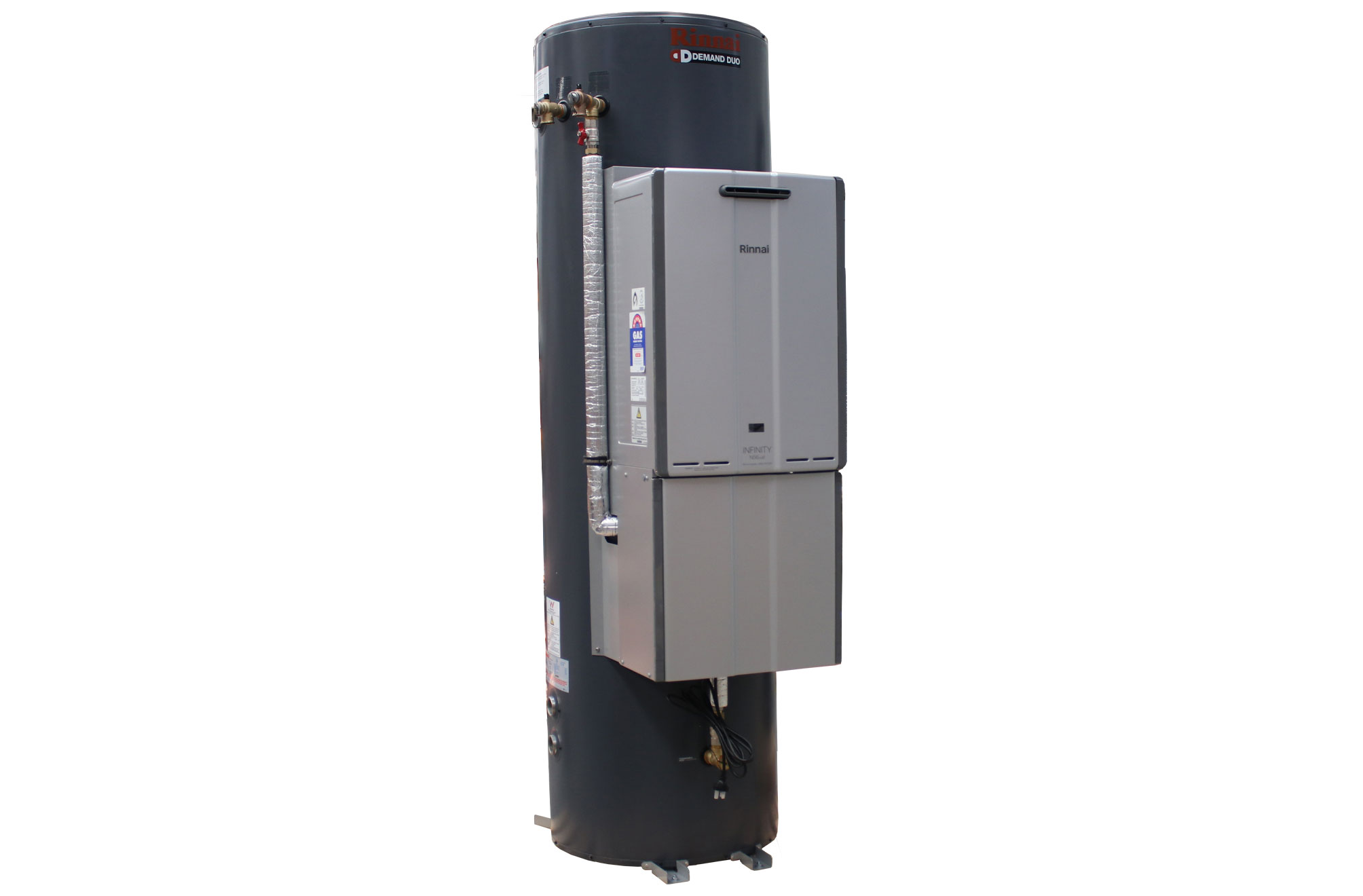

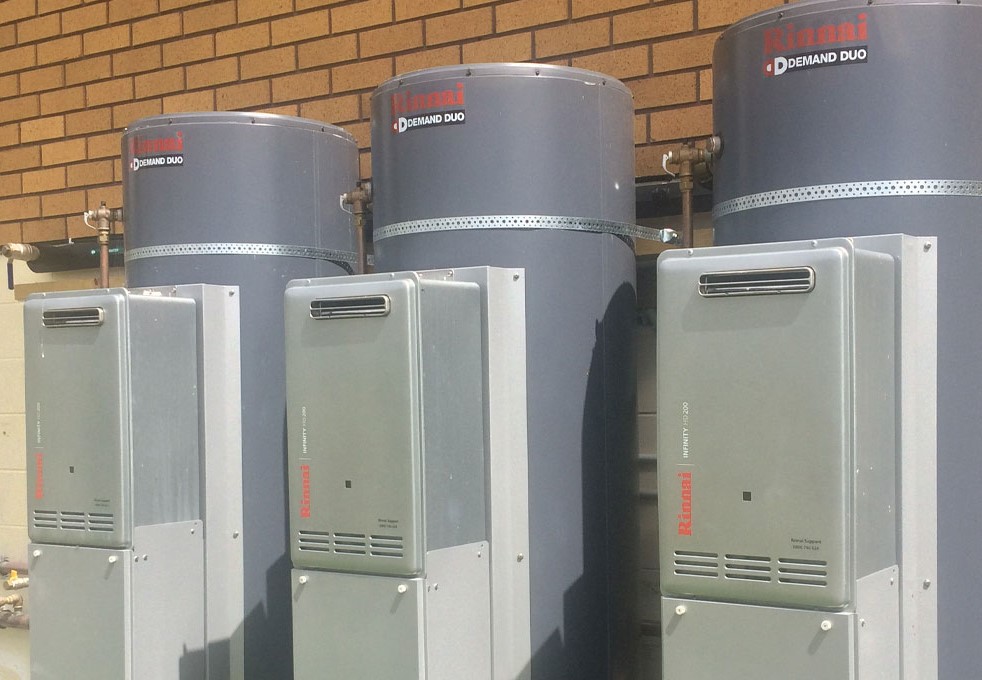

A complete storage hot water system made up of a Rinnai INFINITY commercial continuous flow gas water heater (external or internal unit), a pump, a thermostat and controller, and a 315 L Demand Duo cylinder.

How it works

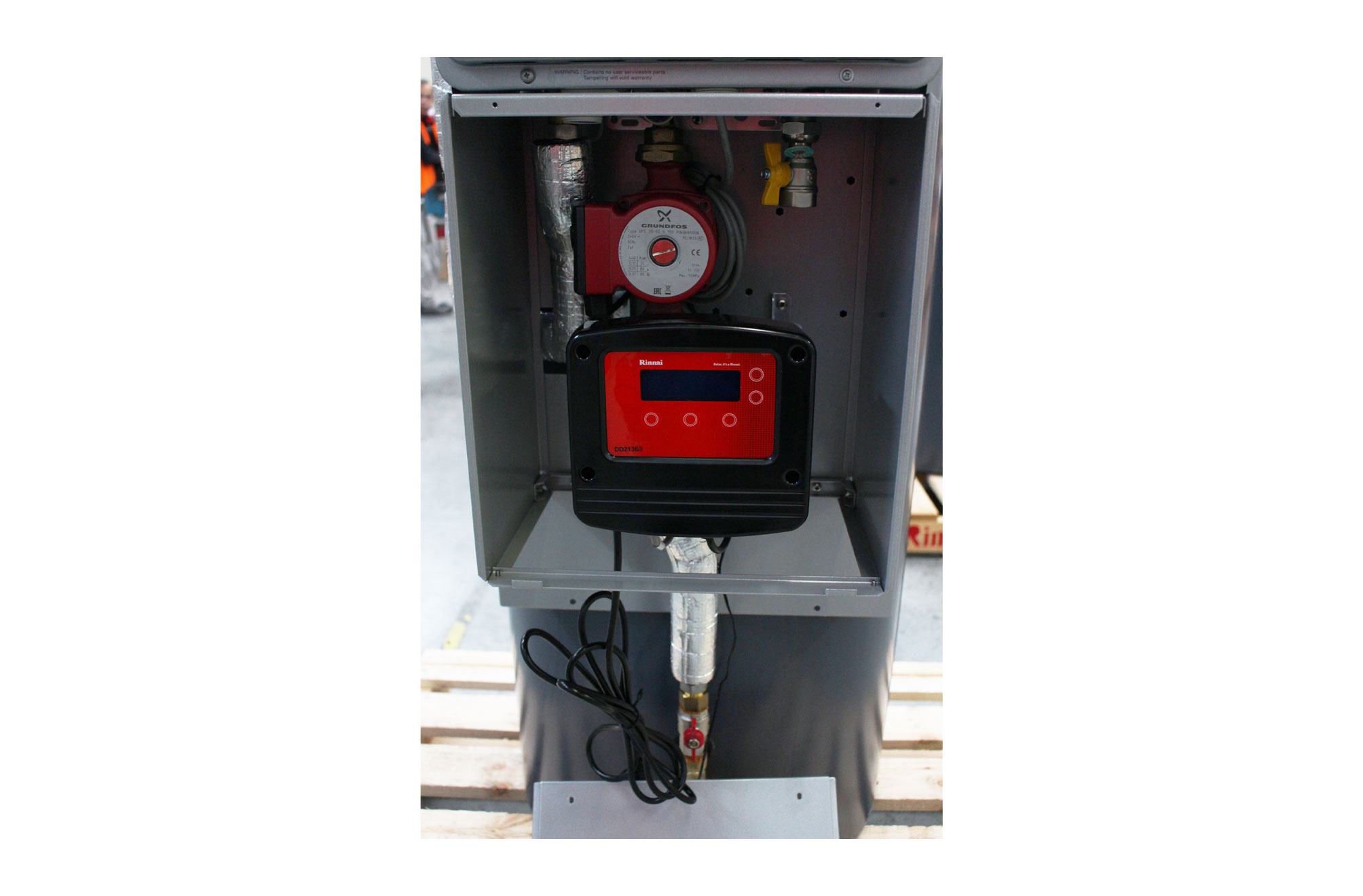

The thermostat senses the temperature of the water in the cylinder, and when it drops below the set point, the pump is activated. The flow then starts the Rinnai INFINITY, which returns heated water to the cylinder.

Read More

Product Details

For smaller commercial (small motels), or larger residential where a large quantity of hot water is required quickly, but there is recovery time available before next use. For example filling a machine or filling a spa bath. For commercial applications the water heating system must be sized and installed to written guidelines from Rinnai.

Hard or aggressive water will need to be treated to use this system. If in doubt please test before use.

Not suitable or approved as a pool heater.

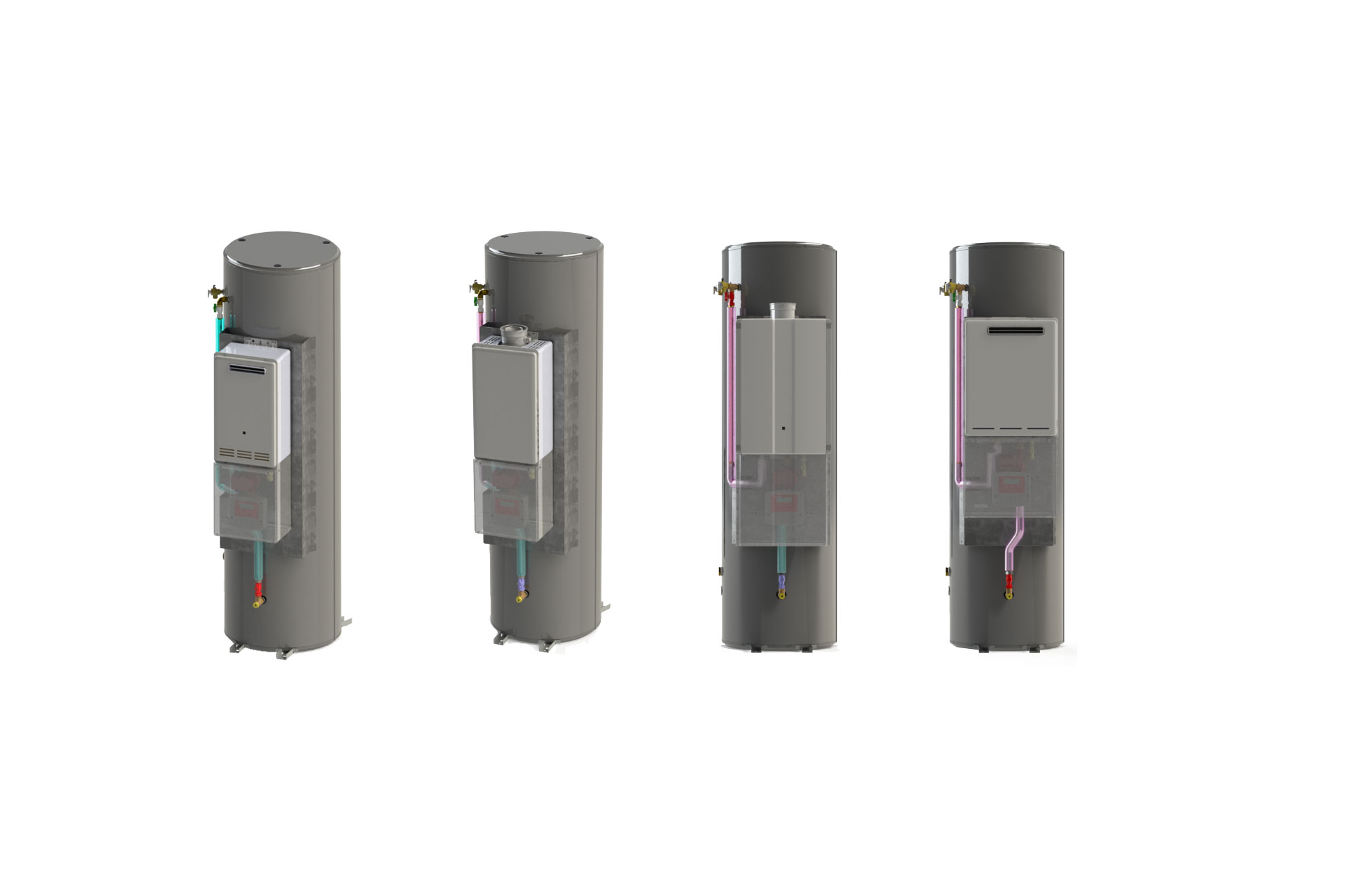

Demand Rapid systems available:

  • DD1200E315N/L (HD200 external in NG or LPG)
  • DD1200I315N/L (HDi200 internal in NG or LPG)
  • DD1250E315N/L (HD250 external in NG or LPG)
  • DD1N56E315N/L (N56 external in NG or LPG)
  • DD1N56I315N/L (N56 internal in NG or LPG)

Technical Specifications

Input

195-249

Output

44.5-57.8


Connections
  • Gas - DN20 ¾ " BSP male
  • Cold inlet - DN32 1¼ " BSP female
  • Hot outlet - DN32 1¼ " BSP female
  • Hot water return - DN32 1¼ " BSP female (not used)
  • Condensate - DN15 ½ " (N-Series only)
TPR

DN20 ¾ " BSP female
850 kPa, 99 °C, 46 kW

Electricity

230 V AC GPO

ECV

700 kPa (not supplied)

PLV

500 kPa (not supplied)

Hot water delivery
  DD1200E315 & DD1200i315 DD1212NE315, DD1212i315 & DD1250E315
Raised 25 °C 1500 L/h 1700 L/h
Raised 35 °C 1250 L/h 1400 L/h
Raised 45 °C 950 L/h 1200 L/h
Raised 50 °C 875 L/h 1100 L/h
Raised 55 °C 800 L/h 1000 L/h
IP rating

IPX4 (cylinder, control box, and Rinnai INFINITY)

System configuration
  • Thermostat pump on 60 °C
  • Thermostat pump off 65 °C
  • INFINITY setting 75 °C

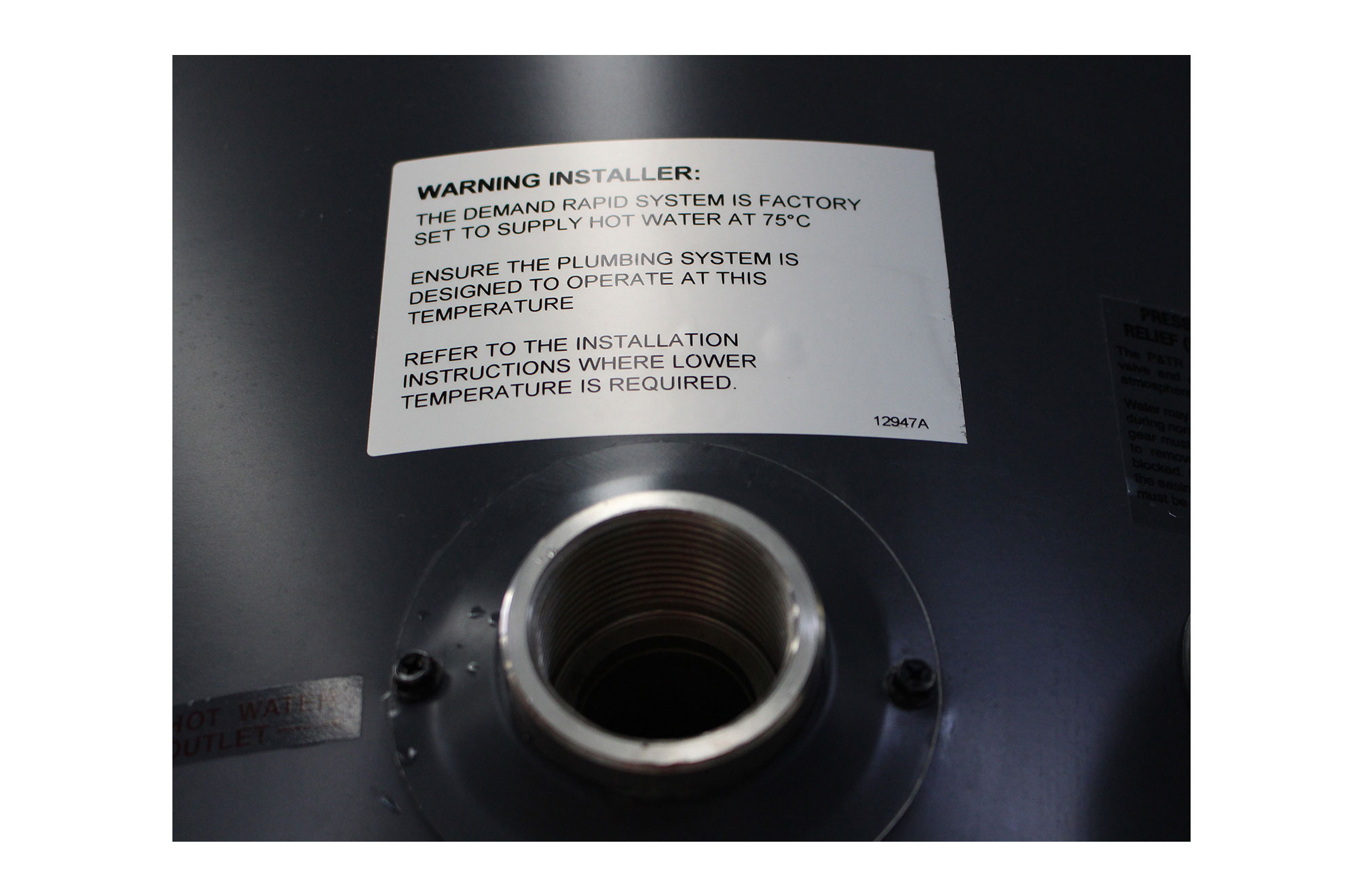

  • Max. outlet water temperature 75 °C
Market release

Top down heating released June 2019 (superseding previous bottom up heating system)
