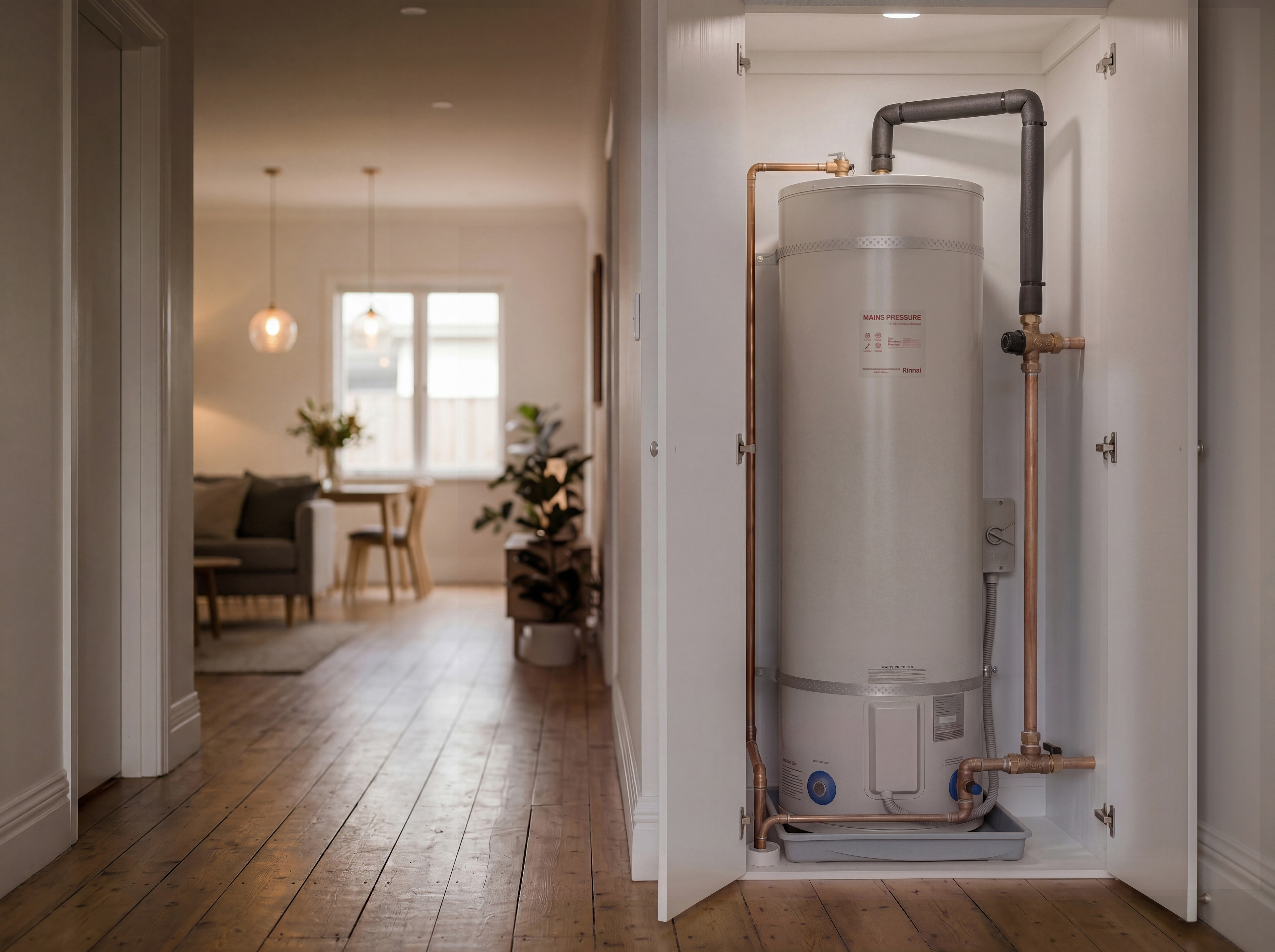

Introducing the Rinnai EasySwap indoor hot water cylinder, the aesthetic choice for cylinder replacements that looks as good as it performs.
Suitable for
Hard or aggressive water will need to be treated in order to use this product, please test before use.
Not suitable as a spa or pool heater, or for solar thermal.
High quality glass lined (vitreous X class enamel) inner cylinder (+/- design). Sturdy corrosion resistant outer casing, and high density expanded polyurethane foam insulation.
Dune
Bunnings colour match (for touchups):
– Base Delux Vivid White
– Can size 0.25
– M OY7.75, EE OY8.25, G 0Y2.75
4-bolt cTech element positioned at the bottom of the cylinder fitted on its side
Ø21.3 mm, 1500 mm long
500 kPa (approx.) all models
700 kPa (approx.) all models
Robert Shaw black dial thermostat ST1203133
Factory set to 70 °C
Setting is between 60-70 °C
TPR supplied with the cylinders:
15 mm, 850 kPa, 10 kW, 99 °C
Based on a thermostat temperature setting of 70 °C and an incoming water temperature of 15 °C. .
| Model | Element | Heat up time | Recovery rate |
| 180 L | 2 kW | 5 hrs 47 mins | 30 L/h |
| 180 L | 3 kW | 3 hrs 51 mins | 44 L/h |
No cylinder wrap required. All Rinnai cylinders meet the NZ Minimum Energy Performance Standard (MEPS).
xx 2026
In all Rinnai cylinder instructions, we mandate the use of a drip tray. This is because all cylinders have the potential to leak water and cause extensive damage.
Our instructions state: The Rinnai warranty does not cover any consequential loss from leaks to the cylinder, so it’s important a suitably drained drip tray/catch pan is fitted as per AS/NZ 3500.4:2015 5.4 and G12/AS1 6.11.3. Like-for-like replacements are a grey area as most installers will only replace the cylinder to the same configuration as the cylinder that is being replaced. In these instances, Rinnai still maintains that a drip tray should be fitted. This protects the homeowner and the building from any future problems should a leak occur.
If a drip tray cannot be fitted, then look at other possible options such as:
• Locating the cylinder outside
• Using a continuous flow gas hot water heater
We realise there’s a lot of information out there. Water heating is important and it’s better to spend the time up front deciding on what you need and what’s important.
We have an experienced customer service team that can walk you through the process. For those more complicated projects we also have a free specification service. Give us a call: 0800 RINNAI (0800 746 624)
Installation costs are difficult to provide as every installation is different. Factors such as the length of pipe required, whether you have accessories fitted, how far away you live and choosing an internal or an external unit all influence the overall cost.
If you’re interested in a Rinnai hot water heating solution, we highly recommend you contact a plumber/gas fitter who will be able to explain all the options to you.
