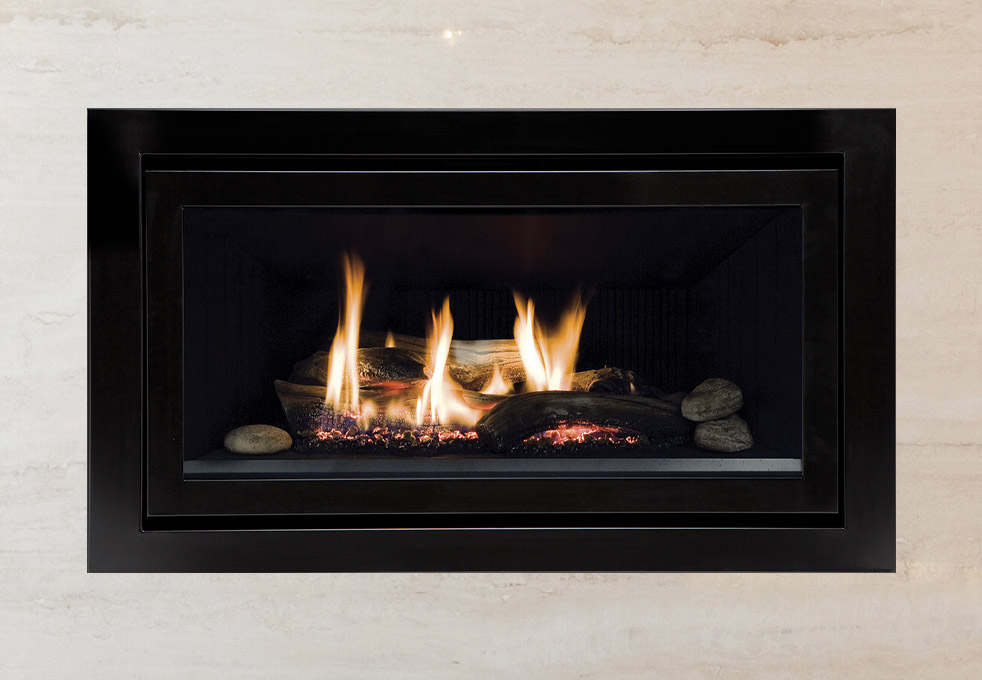

Price above includes the engine ($6169) and a stainless on black premium frame $929 (ordered separately)

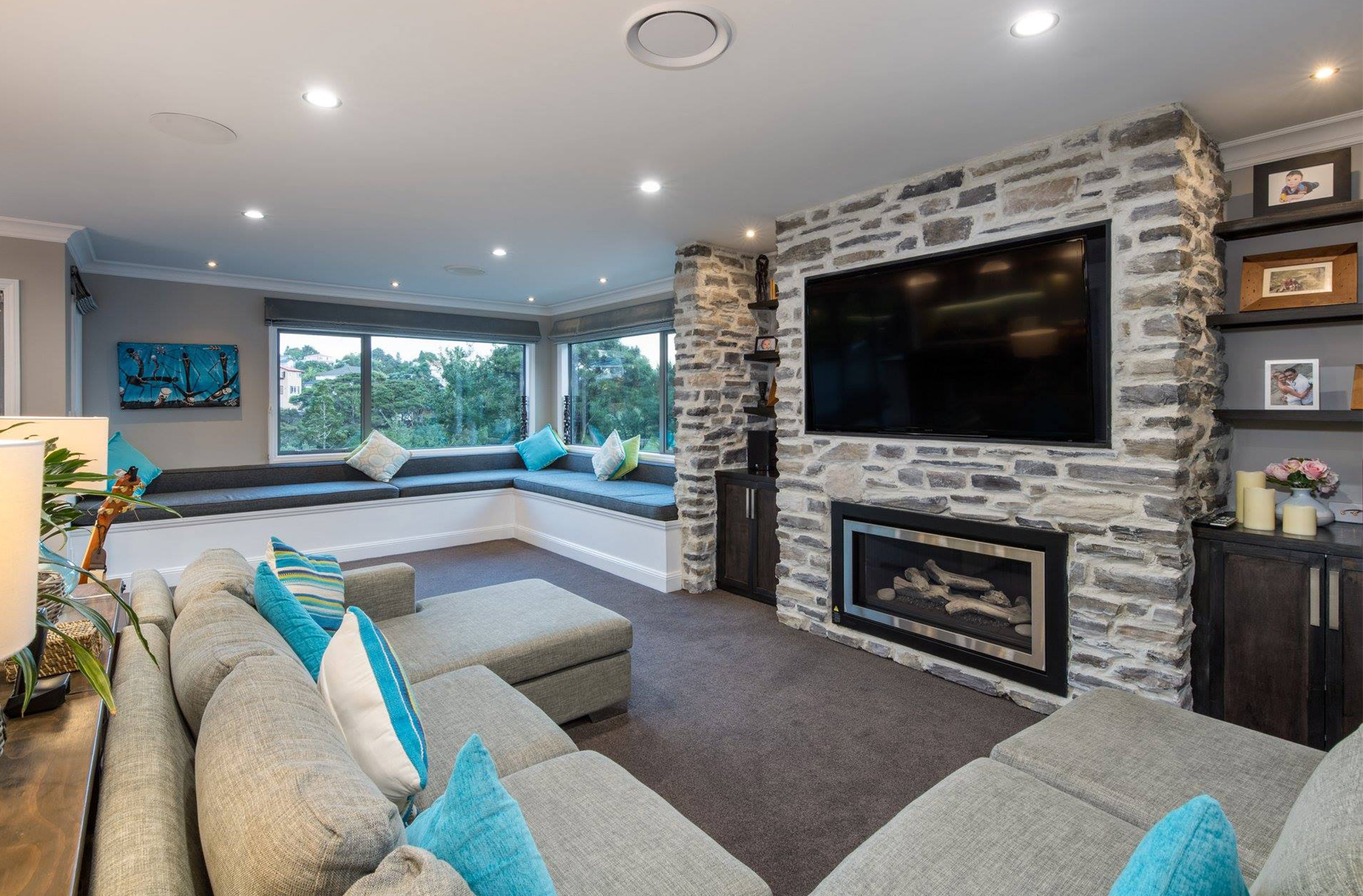

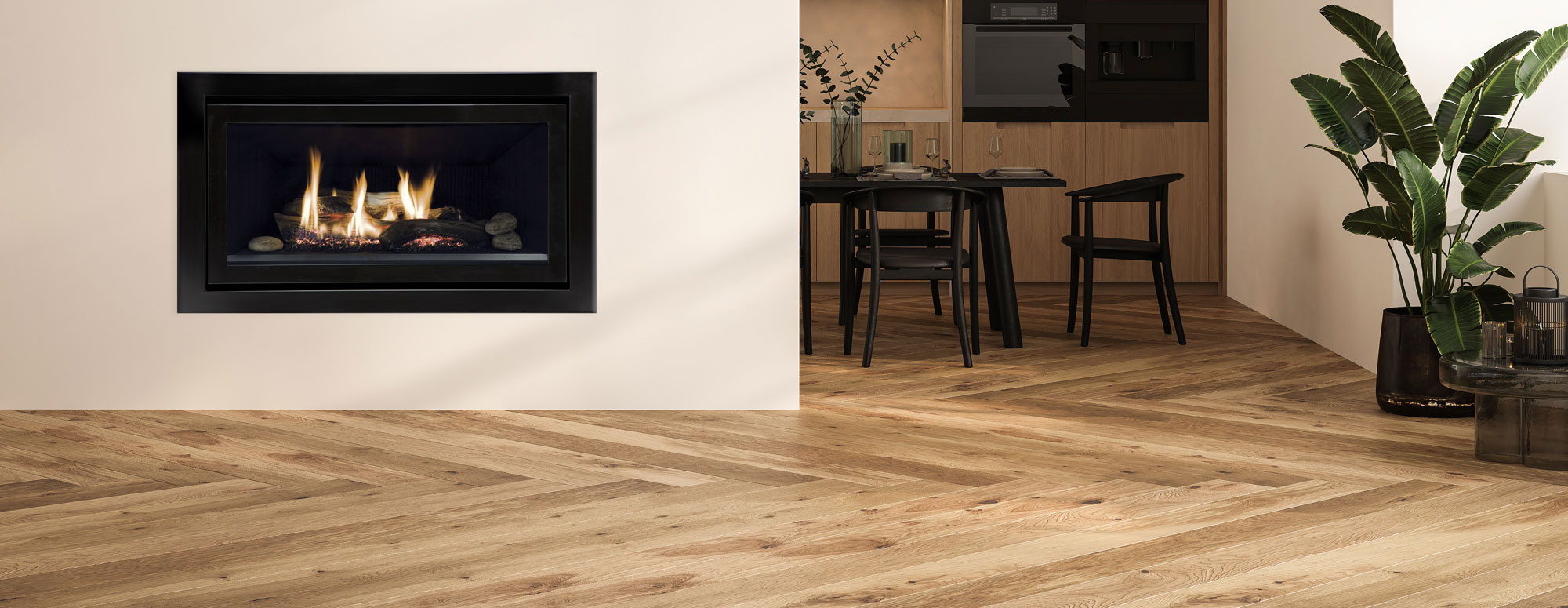

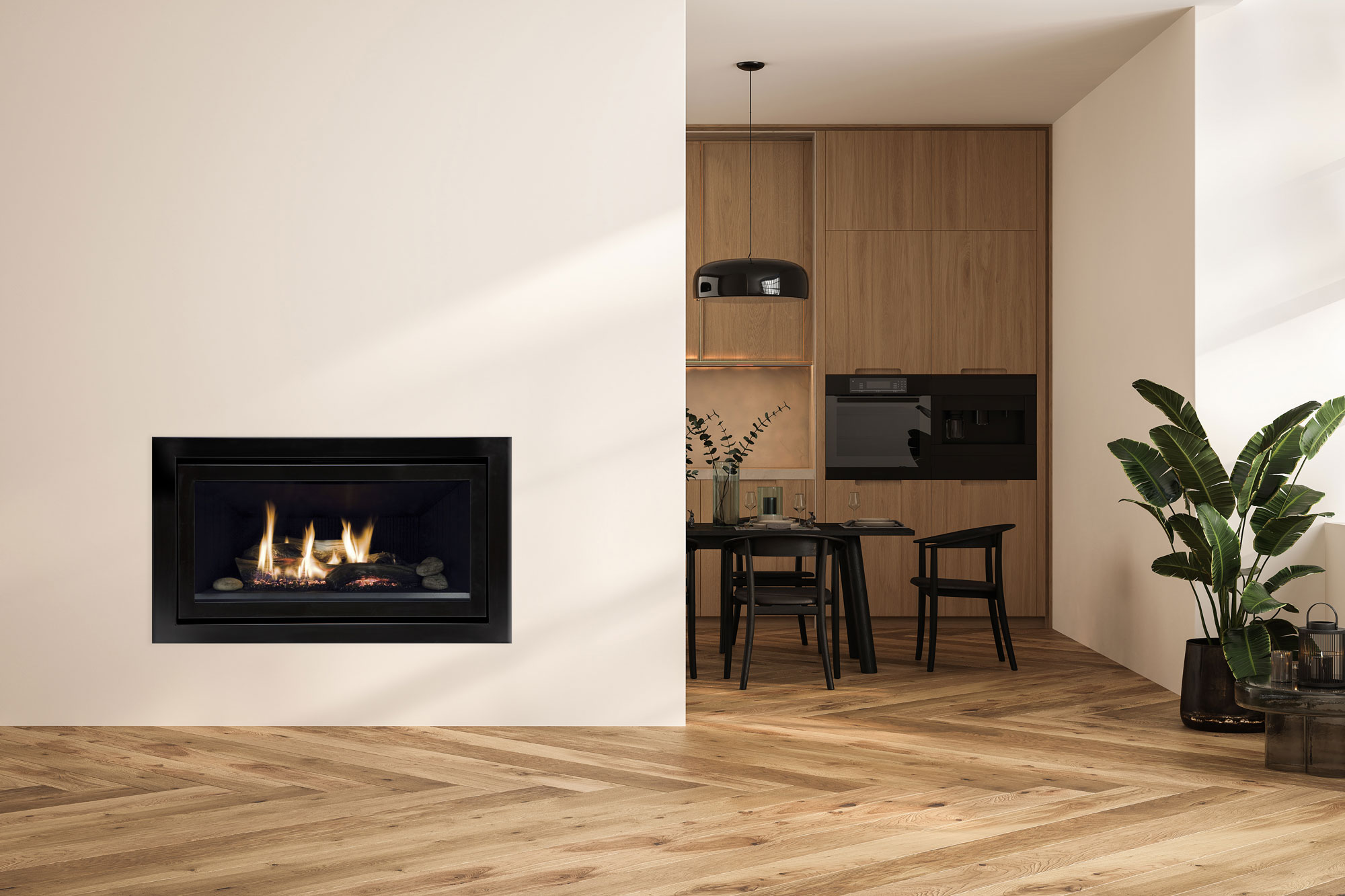

Blending functionality and style, the Symmetry RDV3611 from Rinnai will be the focal point of your living environment. The fire features cost-saving efficiency, design versatility and leading innovations to help keep your home warm and healthy throughout the year.

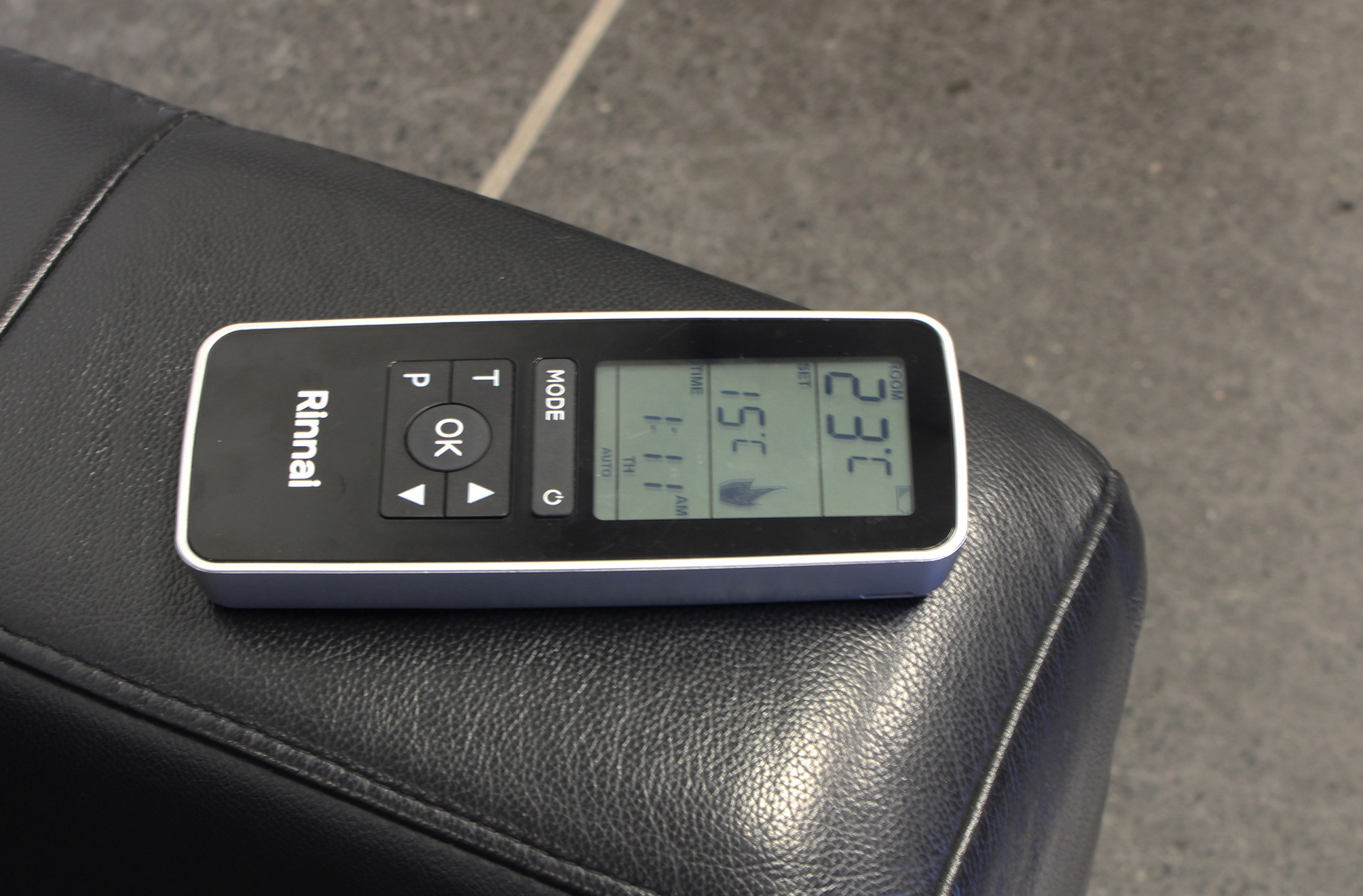

The Rinnai Symmetry RDV3611 is a direct vent inbuilt gas fireplace with a glass front and convection fan, operated with a remote control (7-day programmable timer).

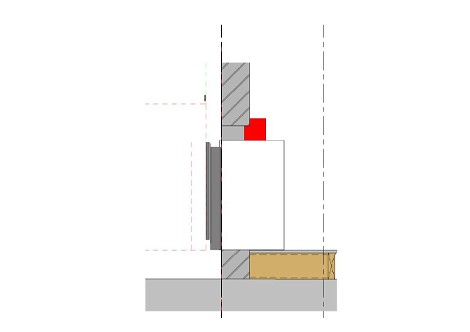

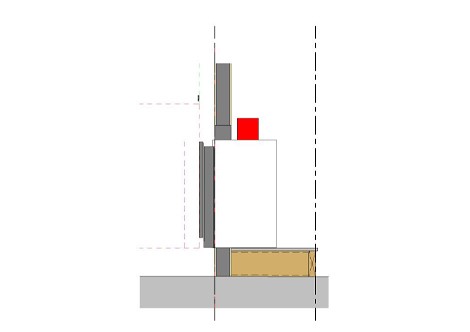

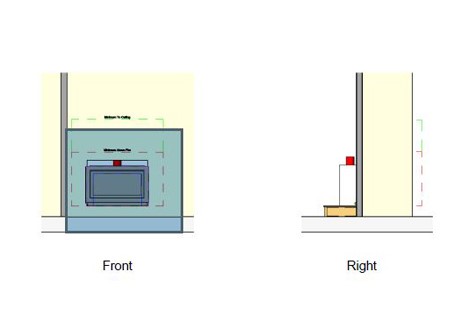

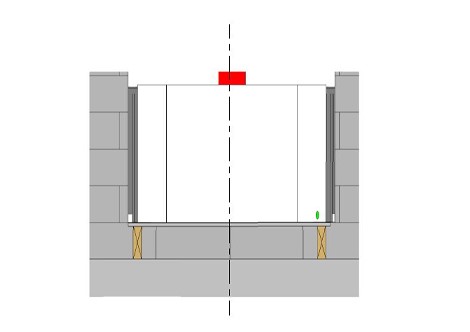

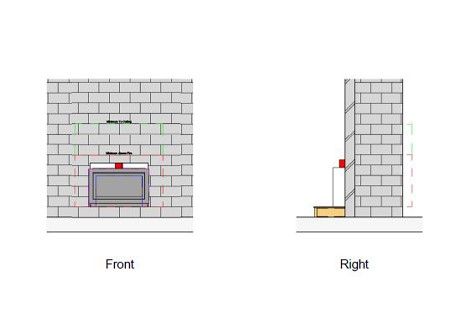

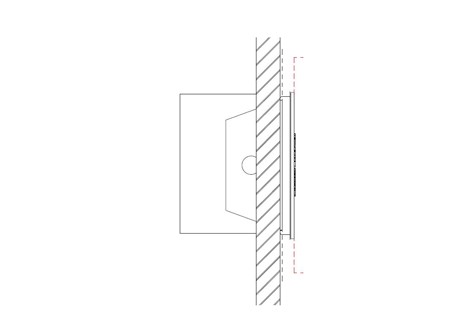

Suitable for living rooms and open plan areas. Recommended for installations into a false (mock) chimney. Not suitable for retrofitting into an existing masonry fireplace.
- Upper North Island, up to 120 m2
- Central and lower North Island, up to 83 m2
- South Island, up to 71 m2
Available for Natural Gas or LPG, specify at the time of purchase.
Ceramic top pan burner
Centre front of base panel (behind the service panels)

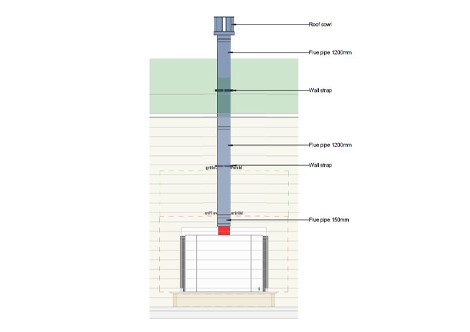

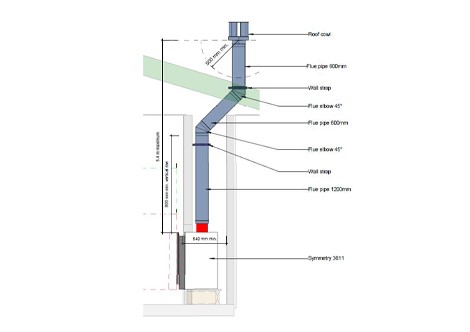

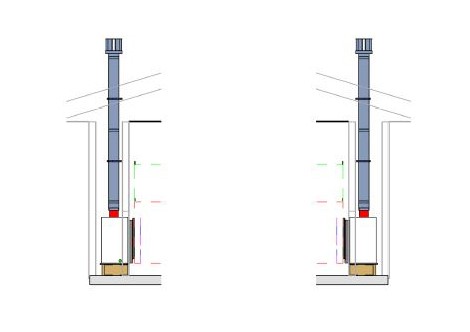

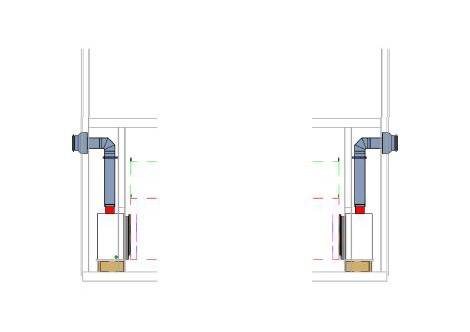

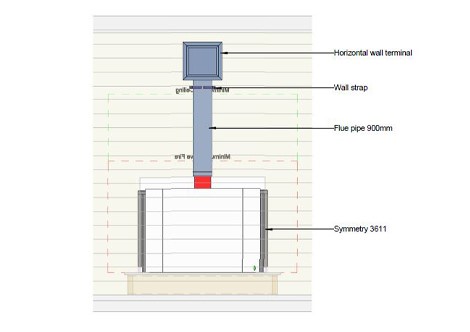

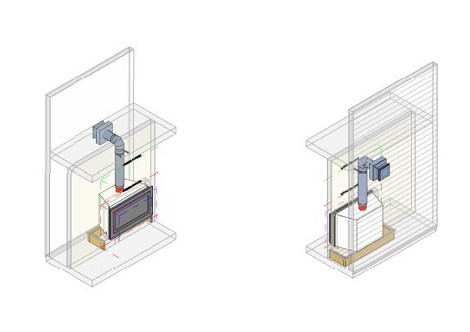

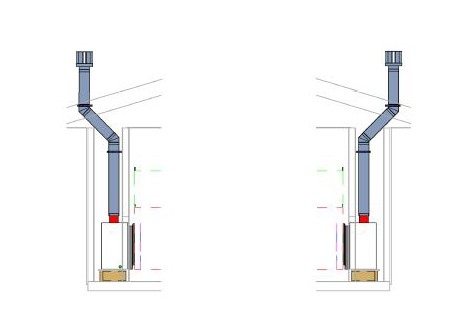

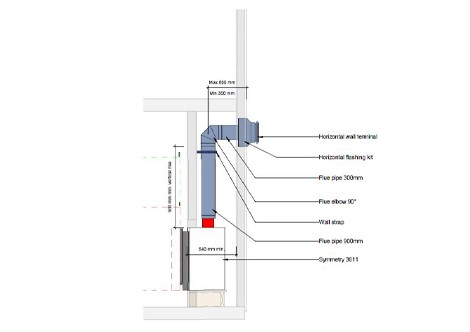

Twin skin flue: inner = 100 mm, outer = 170 mm. Appliance must be installed with a Rinnai supplied flue system. Maximum flue height is 5.4 m.
N.B: For windy areas such as Wellington, coastal properties, and elevated properties on hills we recommend an additional flue component call the DV high wind vertical cowl protection kit (R3655). It is designed to wrap around the flue cowl to reduce wind entering the flue and causing flame disturbances. Refer to the installation instructions in the 'Downloads' tab for more information.
½ " BSP male flare
Integrated sparker to pilot
High 50 W, standby
Light to pilot, delayed ignition, overheat switch, electronic flame supervision (flame failure), and combustion chamber pressure relief.
Thermostatic, temperature control range 7-32 °C

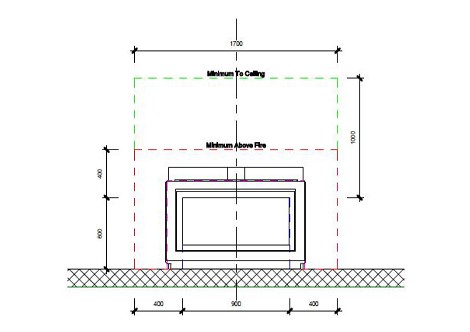

The minimum clearances listed below are measured from the edge of the glass.
Energy Safety Supplier Declaration of Compliance: Declaration number - 1326720122

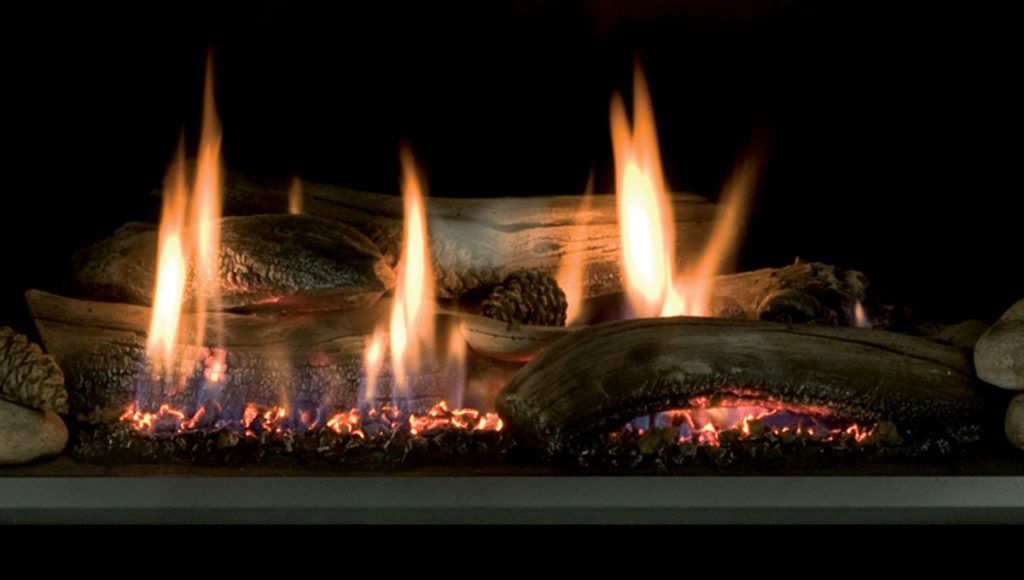

Fine ceramic fibres that emit a beautiful glow to look like burning embers.
Transfers up to 1 kW of heat from the Symmetry to one additional room—one kit per room. Max. of two kits can be connected to the Symmetry. Grill provided in kit is a ceiling outlet.
This accessory kit, ideally ordered at the time of purchasing the unit, is designed to protect against touching the hot surface of the glass.
This accessory kit, ideally ordered at the time of purchasing the unit, enhances the flame picture of the fire.
Yes. The majority of modern gas fires have electronic ignition and safety components that require electricity. For customers concerned with power outages, there are commercially available battery backup systems. One provider is Helio (www.heliosps.co.nz) who supply systems specifically designed for use with gas space heaters and water heaters.

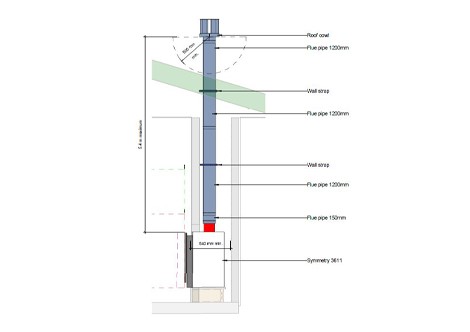

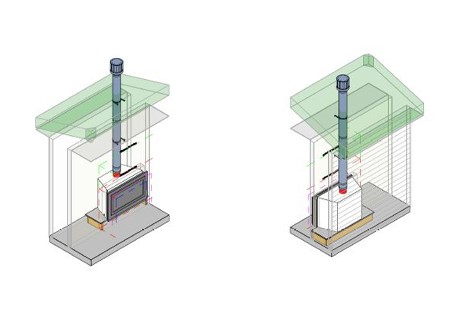

For flues terminating through the roof there is a requirement for how far the flue terminal needs to be from the building. This clearance is required to ensure products of combustion are cleared adequately. Rinnai recommends the flue cowl should have a 500 mm clearance from any part of the building.
For more information, refer to the installation manual of the gas fireplace you are interested in – available on our website.
With the exception of the Compact 2 model, all Rinnai fires may be suitable to have a TV installed above them. Rinnai fires incorporate a fan that distributes warm air outwards into the room rather than directly upwards, meaning that installation of a TV may be an option.
Please refer to the Specification guide for gas fireplaces for recommended installation clearances. It is the responsibility of the owner to check the TV installation instructions with the TV supplier to verify clearances. Some TV manufacturers have warranty conditions that state a TV is not to be installed above a fireplace. Rinnai does not accept any responsibility for damage to a TV resulting from the use of this information.

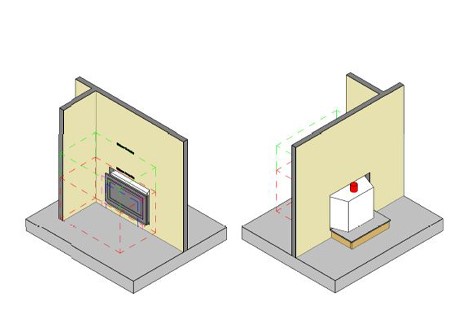

This is a fireproofing box that isolates the appliance from combustible materials. For the Linear, Evolve, Symmetry and Arriva models, this is integrated into the design of the fire. For the Neo inbuilt, Ember and Compact gas fires, a zero clearance frame or box needs to be purchased in addition to the fire if the installation requires isolation from combustible materials.
For reliable operation, Rinnai gas fires should be serviced every two years (including inspection of the flue system). If they are in a particularly dusty environment or subject to excess lint (for example dog hair, or where there are newly laid carpets) then annual servicing is recommended.
If you’d like to schedule a service, just give us a call 0800 RINNAI (0800 746 624) or fill in our form online.
