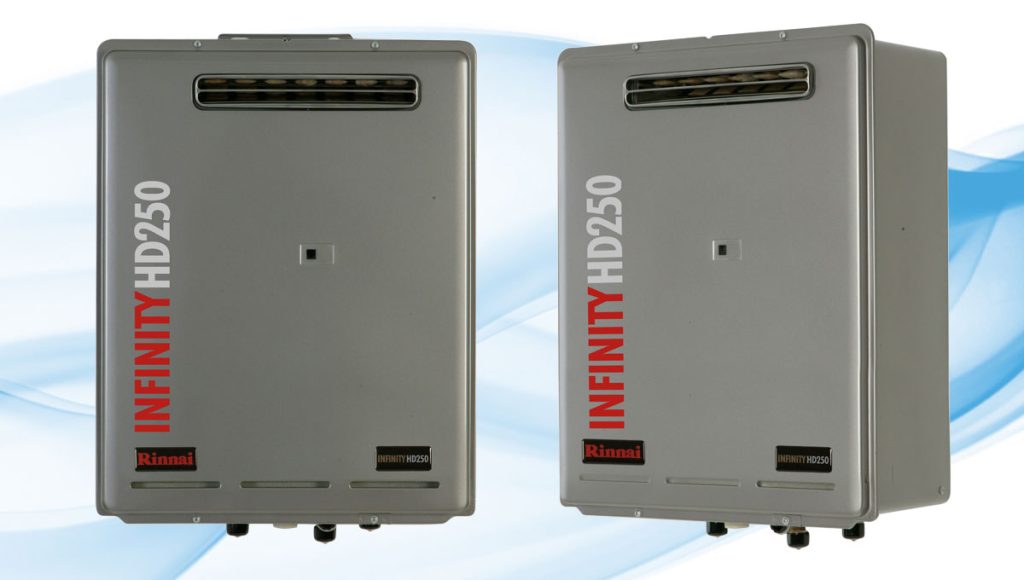

Rinnai INFINITY® HD250 external (REU-VM3237WC)

Overview

Discontinued
Discontinued 2009

External continuous flow gas hot water heater preset to 75 °C with status monitor.

Suitable for mains and medium pressure residential and commercial external applications. Also applications requiring higher hot water temperatures, can be set up to 95 °C. Hard or acidic water will need to be treated to use this product.

Read More


Technical Specifications

Colour

Silver

Gas type

Available for NG or LPG. Gas type specified at time of purchase.

Input

250 MJ/h or 69 kW

Output

55.2 kW

Efficiency

80%

Capacity

Hot water capacity: 2.4-37 L/min
Nominal water capacity: 32 L/min at a 25 °C rise (1920 L/h)

Connections
  • Hot water outlet R¾ (20 mm)
  • Cold water inlet R¾ (20 mm)
  • Gas supply R¾ (20 mm)
Exhaust system

Forced flue

Ignition system

Direct electronic ignition

Injector size (mm)

NG: 1.00, 1.65
LPG: 0.75, 1.15

Line pressure (max.)

3.5 kPa (maximum standing pressure under abnormal intermittent conditions is 5.0 kPa).

In the case of commercial metering (i.e. 35-37 kPa coming in), there may be a requirement to regulate the incoming line pressure down.

Noise level

49 dB(A)

NOx af

55 ppm

Power consumption

Normal 72 W, standby 2 W, automatic frost protection 116 W

Pressure relief

Valve opens at 2060 kPa and closes at 1470 kPa

Safety devices

Flame failure, boil-dry protection, overheat protection (OHS), fusible link, pressure relief valve, combustion fan RPM check

Water flow control

Water flow sensor, electronic water flow control devices, and electronic by-pass flow control device

Water supply

Nominal operating pressure: 140-1000 kPa
Minimum water flow: 2.4 L/min

Weight

29 kg

Compliance

Energy Safety Supplier Declaration of Compliance: Declaration number - 10996200911

Market release

2006

Discontinued

2009
