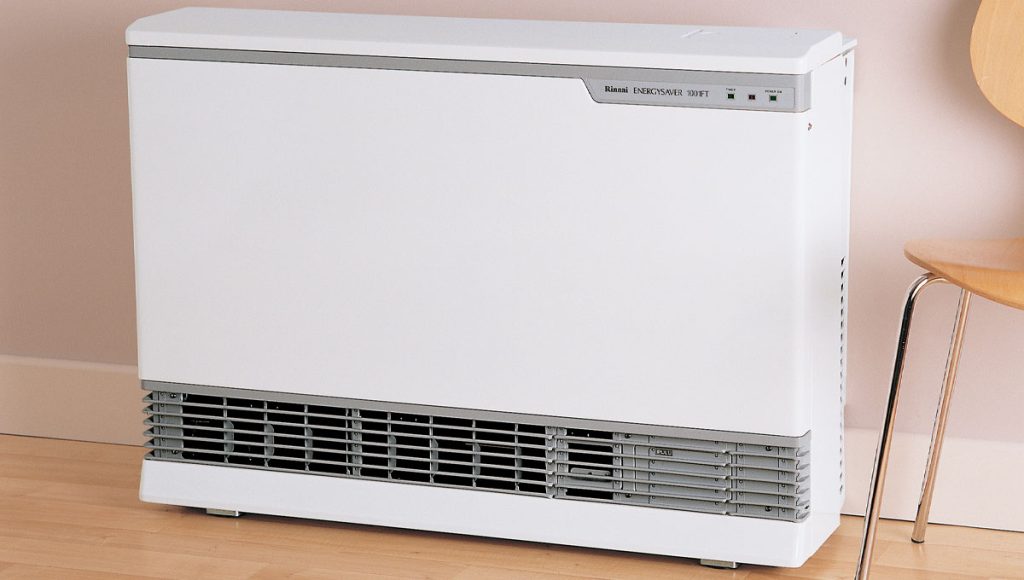

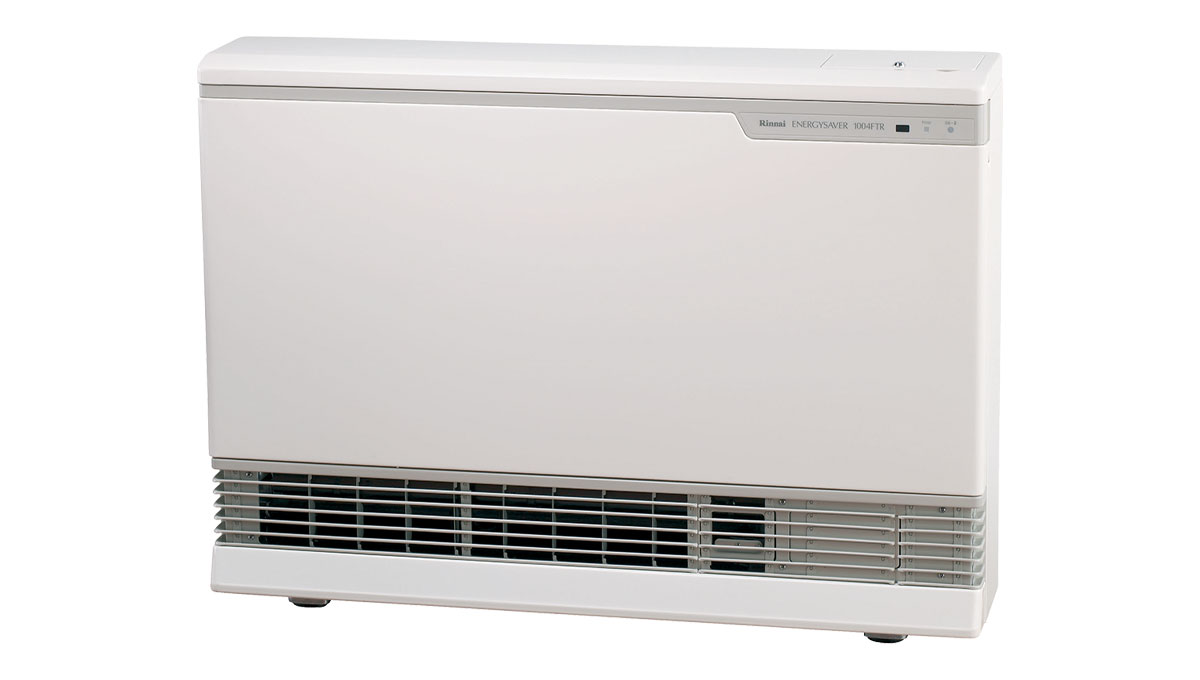

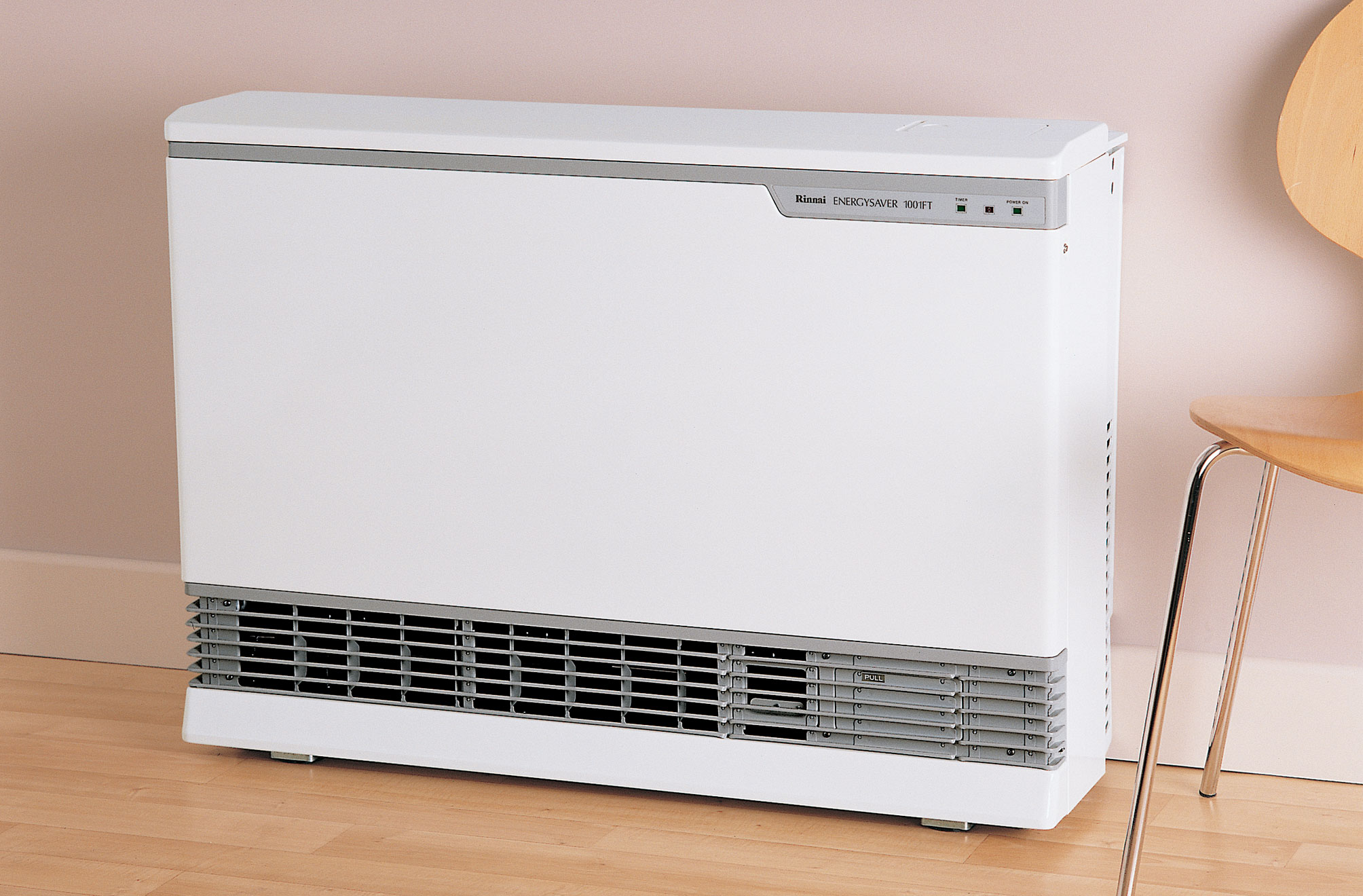

High efficiency power flued heater with programmable timers. Unit discharges warm air through louvres located at the base of unit. This means the room heats quickly as warm air is directed out into the room and not straight up.
Suitable for

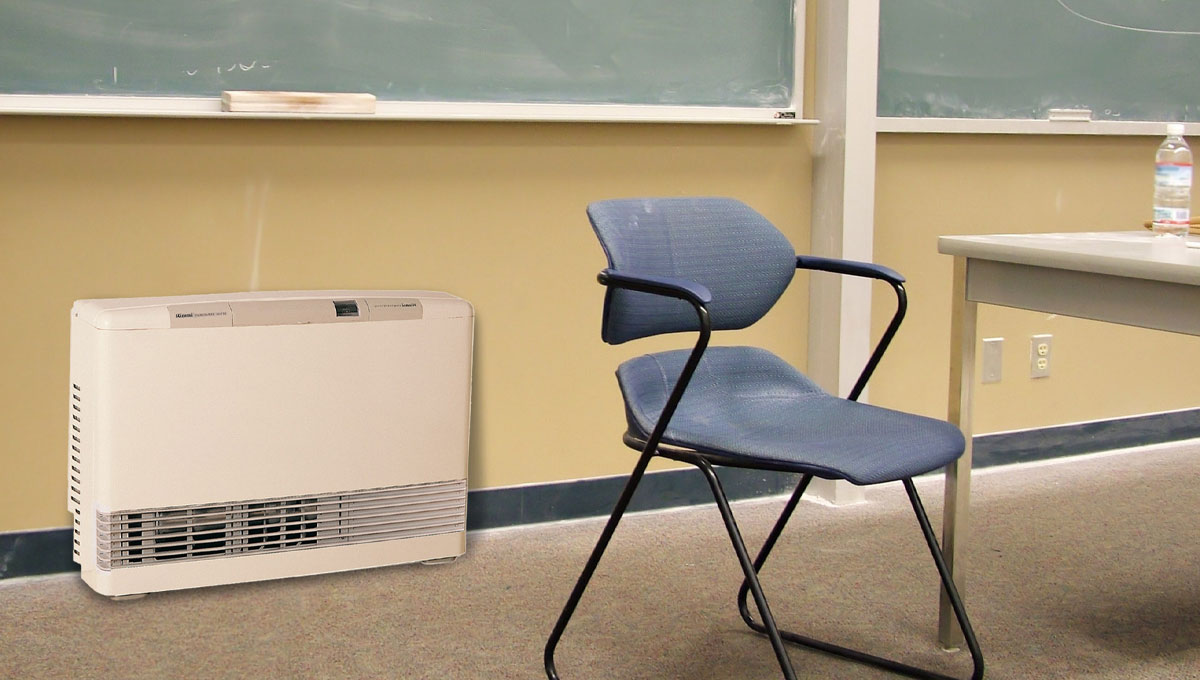

Commercial heating appliance suitable for open plan areas such as classrooms and churches. Can heat up to 119 m2 (depending on geographical location).
MJ/h
kW
%
Available in NG and LPG, gas type specified at time of purchase
Stainless steel bunsen burner
Logic controlled 8-speed modulating fan. Air discharge through bottom louvres.
15 mm BSP male thread
Capacity 3 L, rate of evaporation 300 ml/hr
Automatic ignition (continuous spark)
37-47 dB(A)

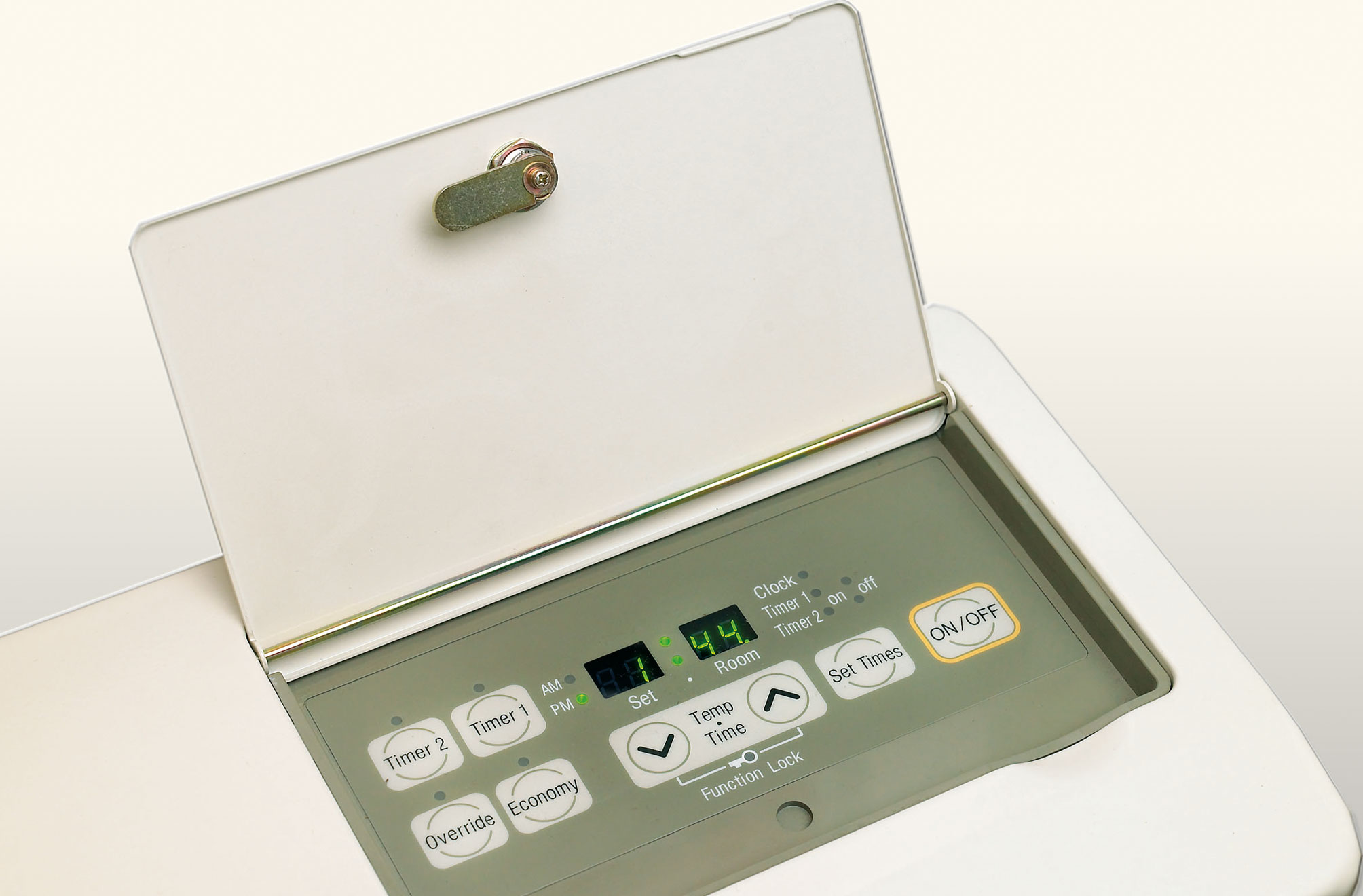

Touch sensitive electronic control pad, remote control, set and forget dual timer. Can also be connected to an external 24 V timer.
64-110 W (low to high)
16-26 °C by 1 ºC increments
Flame failure (flame rod), overheat (bi-metal switch, thermal fuse, thermistor), power failure (PCB), power fuse (3 A fuse), and fan delay (microcomputer timer)
42 kg
Energy Safety Supplier Declaration of Compliance: Declaration number – 1411020132
2001
June 2015, superseded by 1005FT model
Energysaver 1004FTR operation and installation manual
Energysaver 1004FTR flue installation manual
Energysaver ESBEND installation
Energysaver 1004FTR exploded diagrams and spares list
Energysaver 1004FTR conversion
Energysaver 1004FTR service manual
Energysaver 1004FTR remote switching diagram
