Overview

$4,999 RRP

Includes engine ($4149), frame ($554), and burn media ($296)

Designed and made in New Zealand

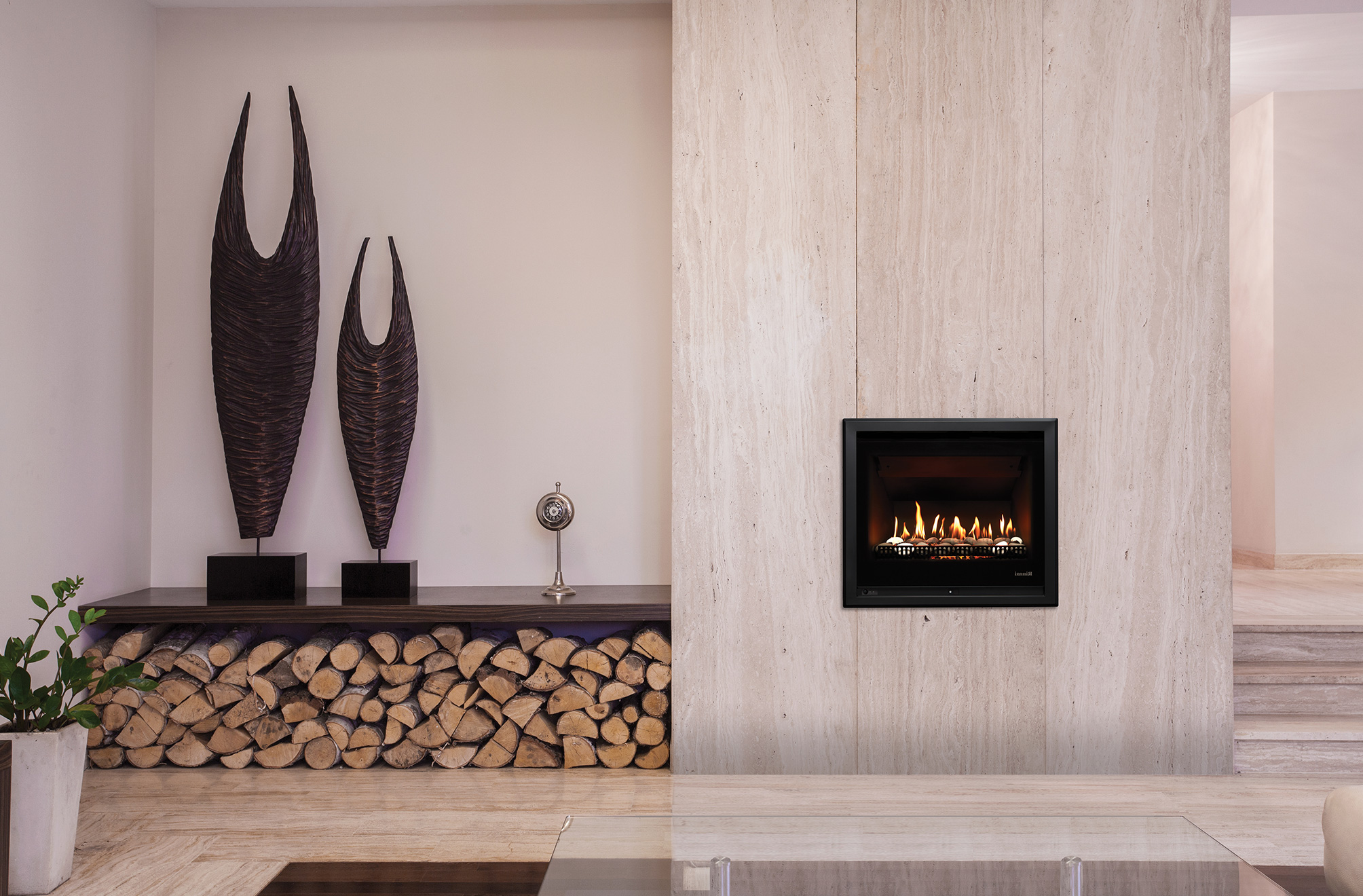

Enjoy a warm welcome home with the Rinnai Ember, the little hottie that offers a stunning glow of a wood fire, the superior warmth of a gas fire, and none of the hard work!

A small gas fire with compact dimensions suitable for new builds and renovations. The Rinnai Ember is available in two sizes and delivers over 5 kW of heat output.

With stunning burn media options, large viewable flame area, and frame choices to suit your lifestyle.

Temperature control
Back-to-basics simple infra-red remote makes operation easy and stress free, or upgrade to Wi-Fi capability with our Wi-Fi module retrofit kit, part number R7000 (RRP $264 plus installation). This will need to be fitted by a licensed gasfitter.

Product Details

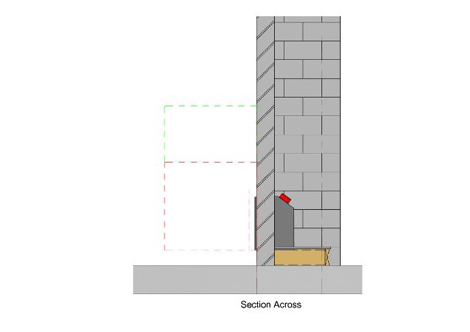

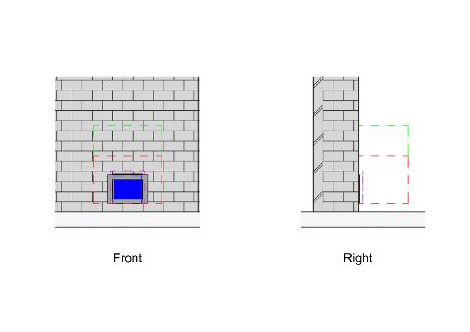

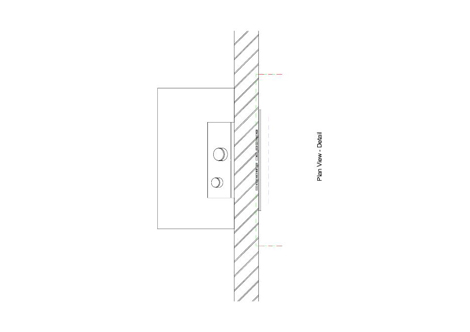

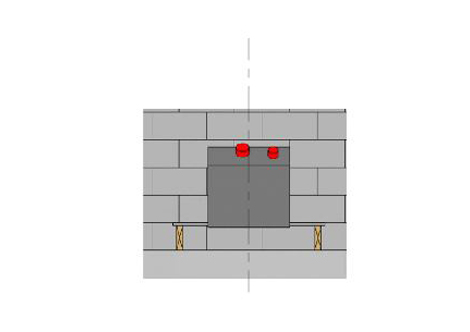

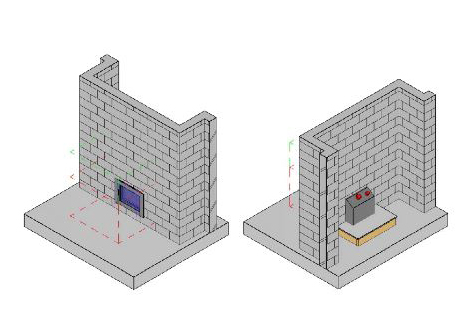

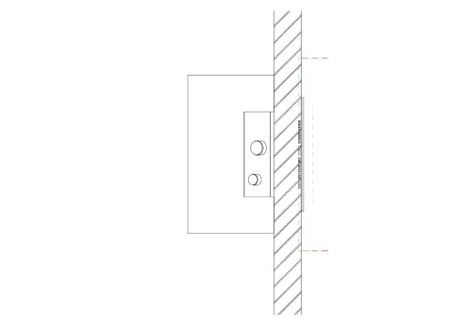

Suitable for masonry installations and installations into a mock (false) chimney in open plan areas and living rooms. For masonry installations, the chimney cavity needs to be at least 200 x 200 mm in order to fit the colinear flexi flue.

Heating areas (up to)
– Upper North Island: 80 m² (600), 96 m² (700)
– Central and lower North Island: 55 m² (600), 66 m² (700)
– South Island: 46m² (600), 56 m² (700)

Room size consideration
Smaller rooms will heat up quickly, and due to the efficiency of the appliance, the fire will turn to a low setting once the set temperature has been reached.

Tech Specs

Technical Specifications

Input

12-27

MJ/h

Output

2.5-6.0

kW

Efficiency

77%

Input and output will vary according to model, gas type, and flue configuration

Gas type

Available for Natural Gas or LPG, specify at the time of purchase

Convection fan

120 V AC 50 Hz 2-speed centrifugal blower. Heat is distributed from the top of the appliance.

Data plate

Located on the lower RHS of the base panel, in front of the gas control.

Gas connection

Brass ½ ” BSPT male fitting. The gas supply terminates inside the heater, lower RHS of the appliance.

Ignition

230-240 V AC 50 HZ high voltage electronic spark generation unit.

Noise level

37-45 dB(A)

Flueing - masonry

Colinear flexi flue, air intake Ø 75 mm, exhaust Ø 100 mm. Appliance must be installed with a Rinnai Ember flue system.

Refer below comment regarding the DV high wind vertical cowl protection kit.

Flueing - mock chimney

Colinear (air intake Ø75 mm, exhaust Ø100 mm) to coaxial direct vent flueing (inner Ø100 mm, outer Ø170 mm). Appliance must be installed with a Rinnai Ember flue system.

N.B: For windy areas such as Wellington, coastal properties, and elevated properties on hills we recommend an additional flue component call the DV high wind vertical cowl protection kit (R3655). It is designed to wrap around the flue cowl to reduce wind entering the flue and causing flame disturbances. Refer to the installation instructions in the ‘Downloads’ tab for more information.

Power consumption

High 110 W
Standby < 1 W

The Ember has a 1.5 m power cord with a 3-pin plug supplied. The power cord passes through a slot in the back right hand corner of the appliance.

Safety devices

Flame failure sensing system, pressure relief, overheat safety switch, air temperature sensor, thermal fuse, overcurrent fuse, and spark detector.

Temperature control

Operated using a basic infra-red remote, or for more features such as timers and thermostatic control, by using a Wi-Fi module (purchased separately) and using the Rinnai Wi-Fi fireplace controller app.

Weights

Ember 600 – 51 kg
Ember 700 – 55 kg

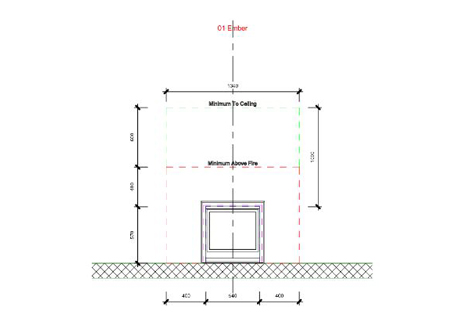

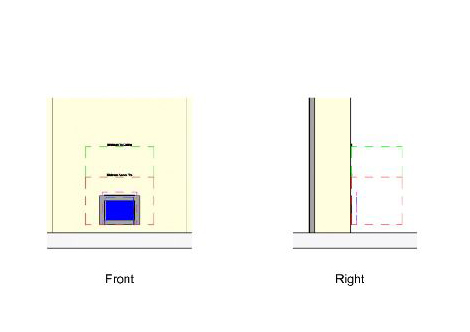

General clearances

The minimum clearances listed below are measured from the edge of the outer glass.

Above – 400 mm
Sides – 400 mm (includes side walls)
In front – 1000 mm

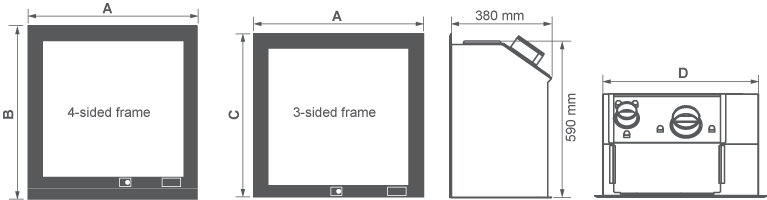

Dimensions

These are the unit dimensions only, not the framing/cavity dimensions

Ember 600: A-640 mm, B-644 mm, C-618 mm, D-580 mm
Ember 700: A-740 mm, B-644 mm, C-618 mm, D-680 mm

Viewable glass dimensions
– Ember 600: 535 (w) x 500 (h) mm
– Ember 700: 638 (w) x 500 (h) mm

Compliance

Energy Safety Supplier Declaration of Compliance: Declaration number – 1810620176

Market release

June 2017

Downloads

Gas fireplace & home heating brochure

Ember ordering guide

Ember spec guide

Ember operation guide

Ember installation guide

Ember product technical statement

DV high wind vertical cowl protection kit (R3655) installation

Ember mock chimney zero clearance frame installation

Ember mock chimney horizontal flue kit installation

Ember 600 burn media sheet on unit

Ember 700 burn media sheet on unit

Ember 600 exploded diagrams and spares list

Ember 700 exploded diagrams and spares list

Wi-Fi user guide (for fires fitted with Wi-Fi module kit)

Ember temperature thermistor position instruction

Ember 600 gas conversion

Ember 700 gas conversion

Ember commissioning

Ember service manual

Ember 600 dataplate

Ember 700 dataplate

Ember OH thermistor bracket kit installation

Rinnai Gas Fireplaces 5-year firebox warranty

Accessories

Gas fireplace Wi-Fi module (R7000)

Enables selected Rinnai gas fireplaces to be connected to the Rinnai wi-fi app for full thermostatic control and functionality.

Read More

LPG gas auto regulator & fittings kit (R4801)

The regulator and associated kit components, allow for a compliant 2 x 45 kg (twin-pack) LPG installation.

Read More

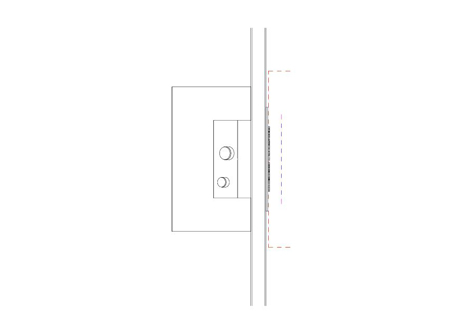

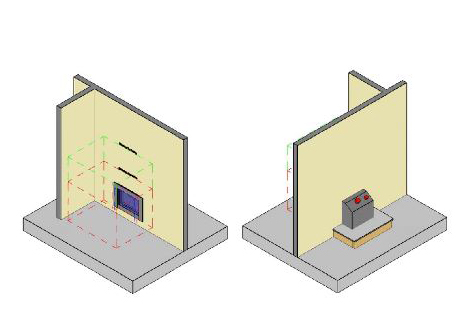

CAD/BIM

CAD/BIM Downloads

Select a Variant

FAQs

Yes. The majority of modern gas fires have electronic ignition and safety components that require electricity. For customers concerned with power outages, there are commercially available battery backup systems. These are not sold by Rinnai. One provider that does sell battery back up systems is: Helio (www.heliosps.co.nz) who supply systems specifically designed for use with gas space heaters and water heaters.

For flues terminating through the roof there is a requirement for how far the flue terminal needs to be from the building. This clearance is required to ensure products of combustion are cleared adequately. Rinnai recommends the flue cowl should have a 500 mm clearance from any part of the building.

For more information, refer to the installation manual of the gas fireplace you are interested in – available on our website.

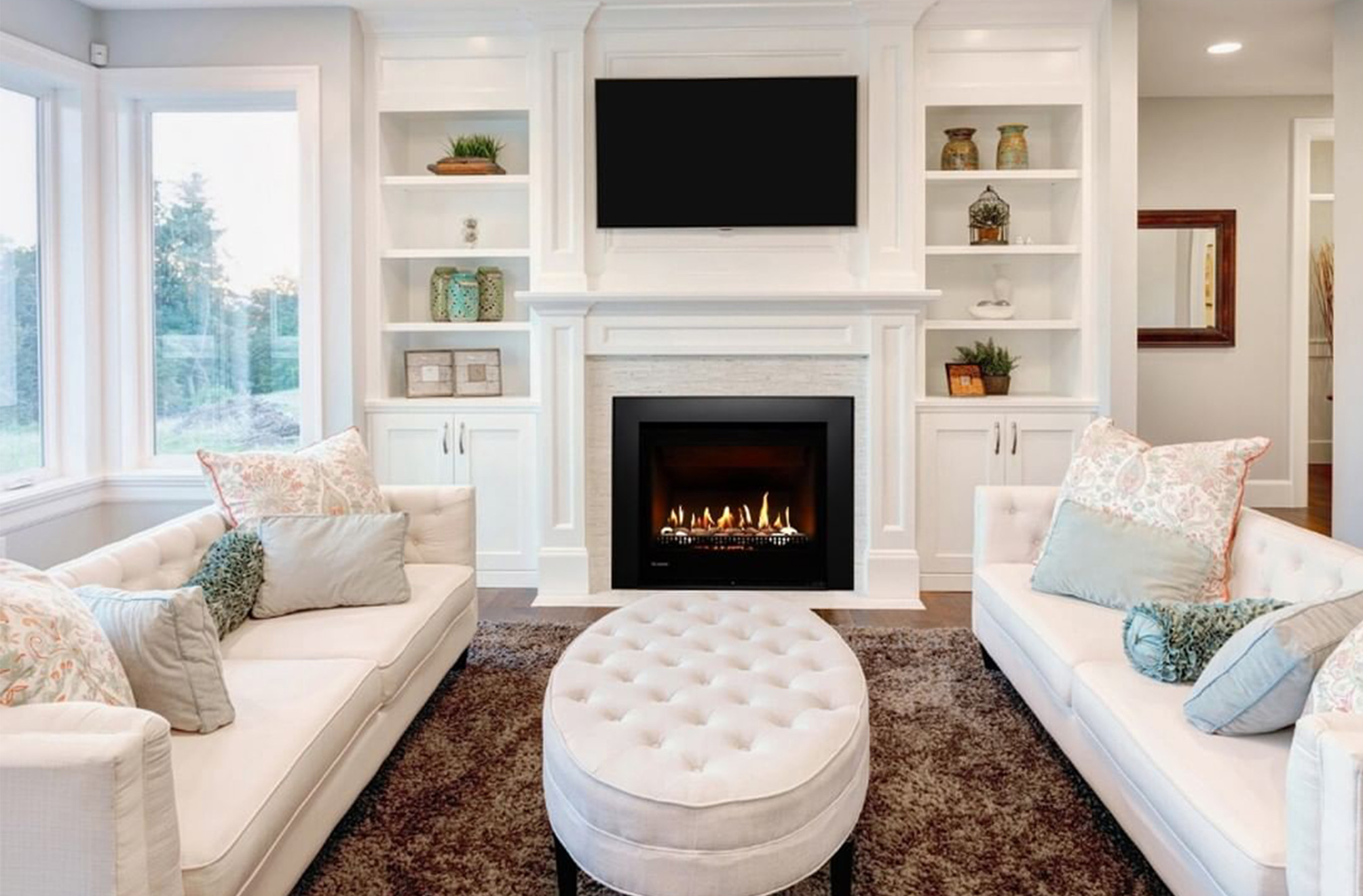

With the exception of the Compact 2 model, all Rinnai fires may be suitable to have a TV installed above them. Rinnai fires incorporate a fan that distributes warm air outwards into the room rather than directly upwards, meaning that installation of a TV may be an option.

Please refer to the Specification guide for gas fireplaces for recommended installation clearances. It is the responsibility of the owner to check the TV installation instructions with the TV supplier to verify clearances. Some TV manufacturers have warranty conditions that state a TV is not to be installed above a fireplace. Rinnai does not accept any responsibility for damage to a TV resulting from the use of this information.

This is a fireproofing box that isolates the appliance from combustible materials. For the Linear, Evolve, Symmetry and Arriva models, this is integrated into the design of the fire. For the Neo inbuilt, Ember and Compact gas fires, a zero clearance frame or box needs to be purchased in addition to the fire if the installation requires isolation from combustible materials.

For reliable operation, Rinnai gas fires should be serviced every two years (including inspection of the flue system). If they are in a particularly dusty environment or subject to excess lint (for example dog hair, or where there are newly laid carpets) then annual servicing is recommended.

If you’d like to schedule a service, just give us a call 0800 RINNAI (0800 746 624) or fill in our form online.
