Rinnai Energysaver 556FDT

Overview

Discontinued
Discontinued 2010

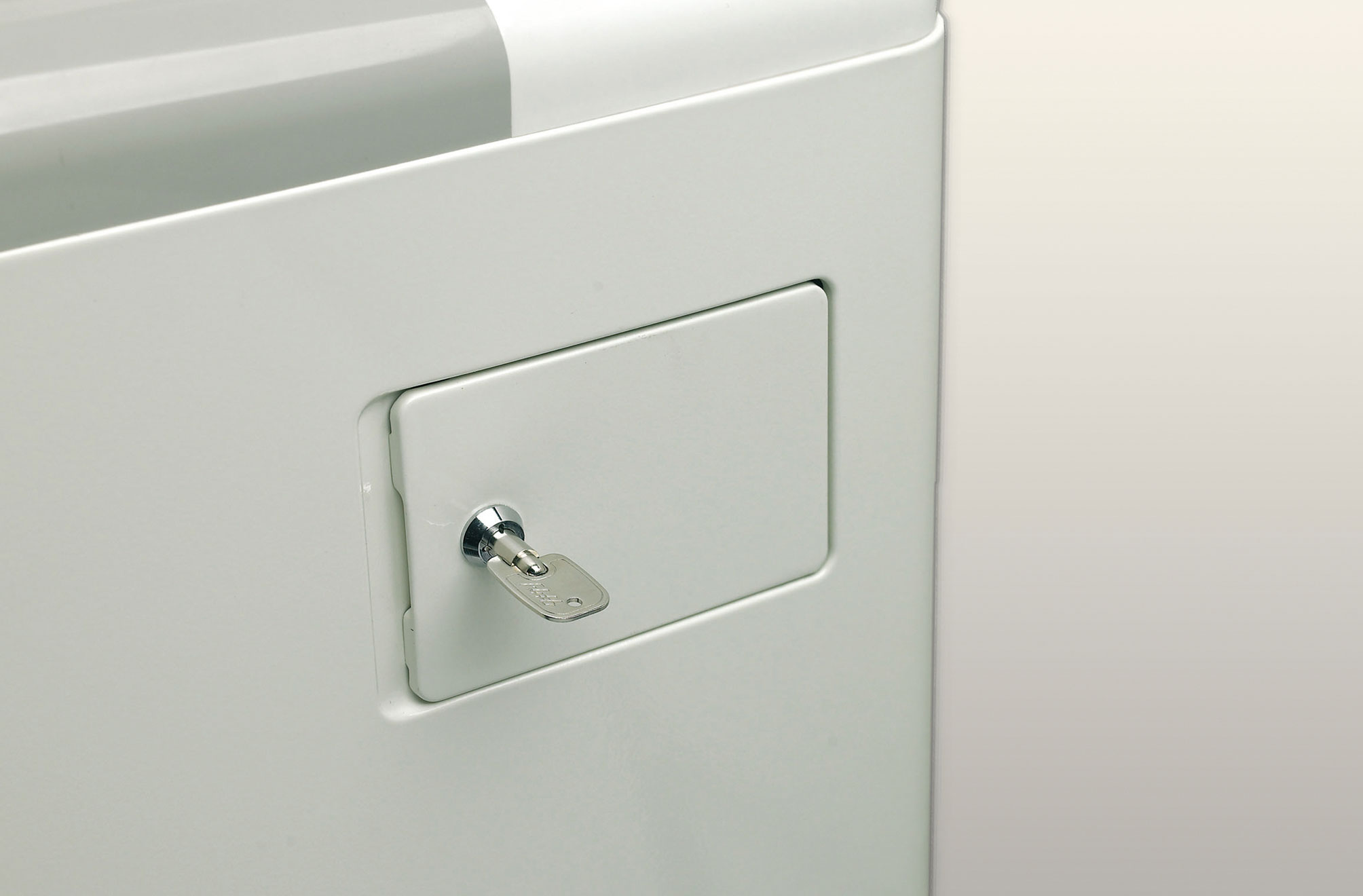

High efficiency power flued heater with programmable timers. Unit discharges warm air through louvres located at the base of unit. This means the room heats quickly as warm air is directed out into the room and not straight up. The FDT model has a control panel that is lockable.

Suitable for
Residential and commercial heating appliance suitable for open plan areas such as living rooms, and bedrooms. Can heat up to 63 m2 (depending on geographical location).

Read More


Technical Specifications

Colour

White*

Input

23

Output

5.2

Efficiency

81

With grey louvres
Gas type

Available in NG and LPG, gas type specified at time of purchase

Combustion system

Stainless steel bunsen burner

Fan type

Logic controlled 8-speed modulating fan. Air discharge through bottom louvres.

Gas connection

15 mm BSP male thread

Humidifier tray

Capacity 1.3 L

Ignition system

Automatic ignition (continuous spark)

Injector size

NG - 4 x 1.30 mm
LPG - 4 x 0.85 mm

Noise level

31-41 dB(A)

Operation

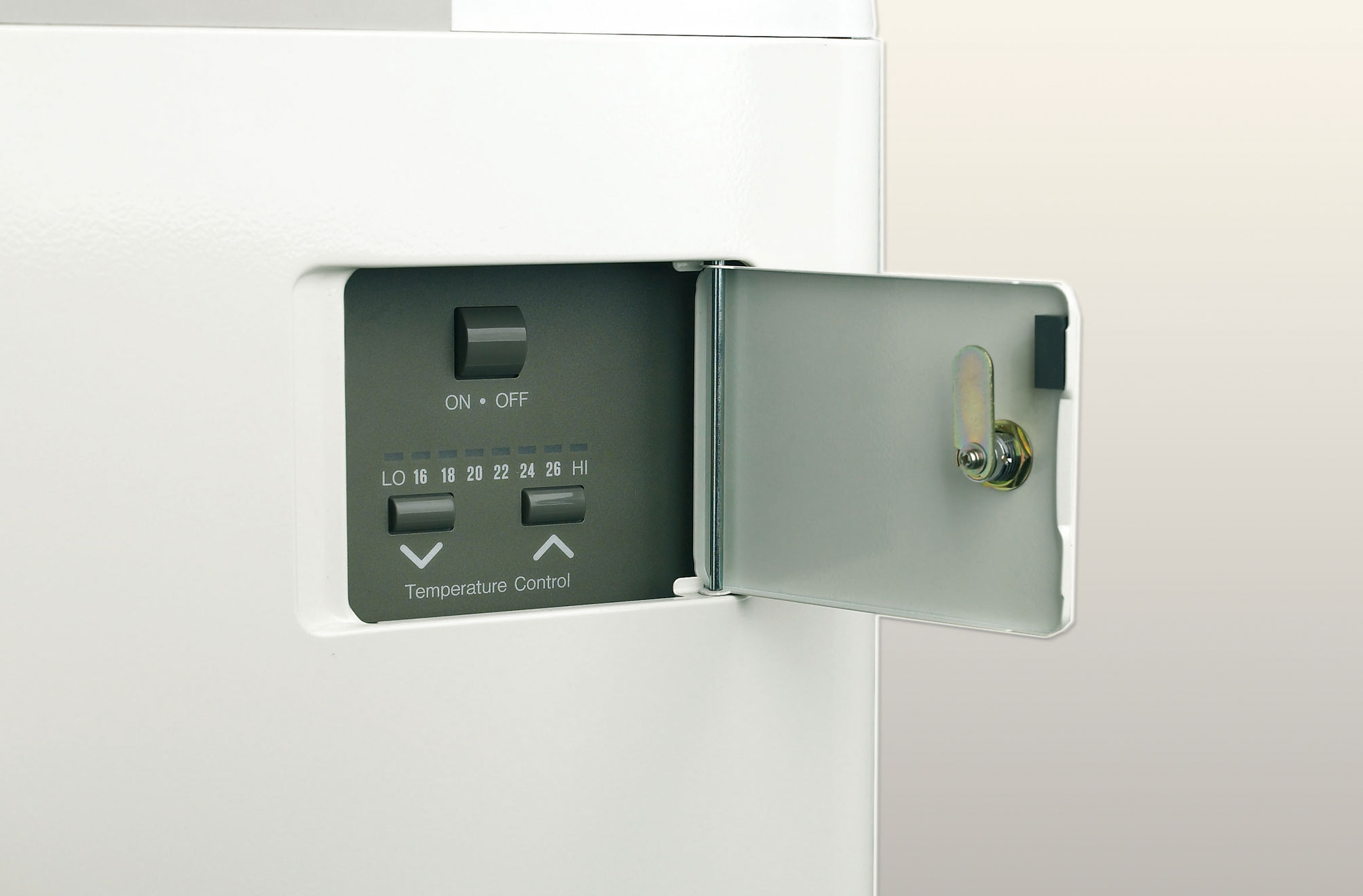

Touch sensitive electronic control pad, remote control, set and forget dual timer.

Power consumption

54-60 W (low to high)

Temperature range

16-26 °C by 1 ºC increments (low 10 °C)

Safety devices

Flame failure (flame rod), overheat (bi-metal switch, thermal fuse, thermistor), power failure (PCB), power fuse (3 A fuse), and fan delay (microcomputer timer)

Weight

22 kg

Market release

1997

Discontinued

2010
