Timberflame Radius (IB35ETR and IB35R)

Overview

Range Discontinued

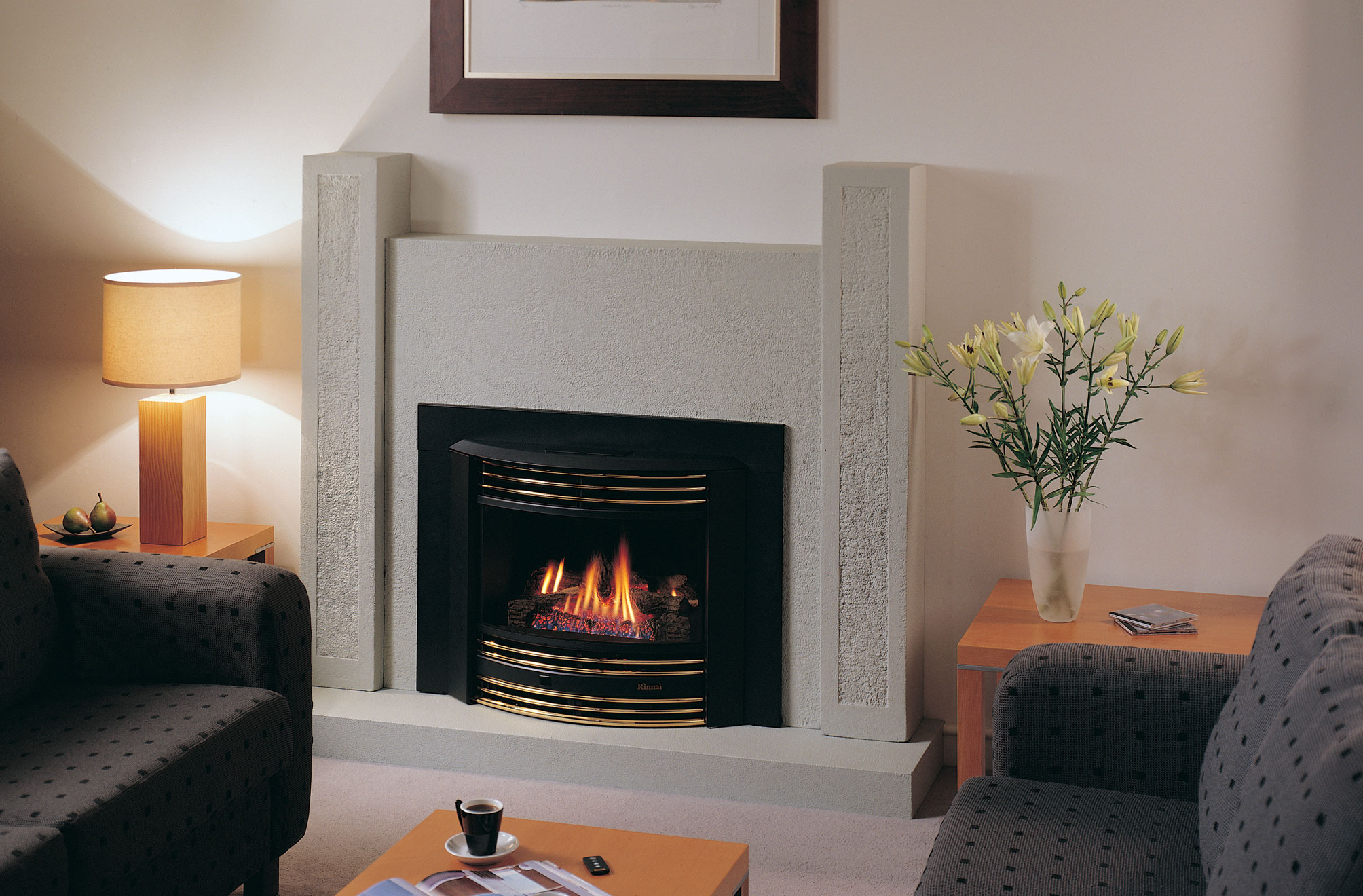

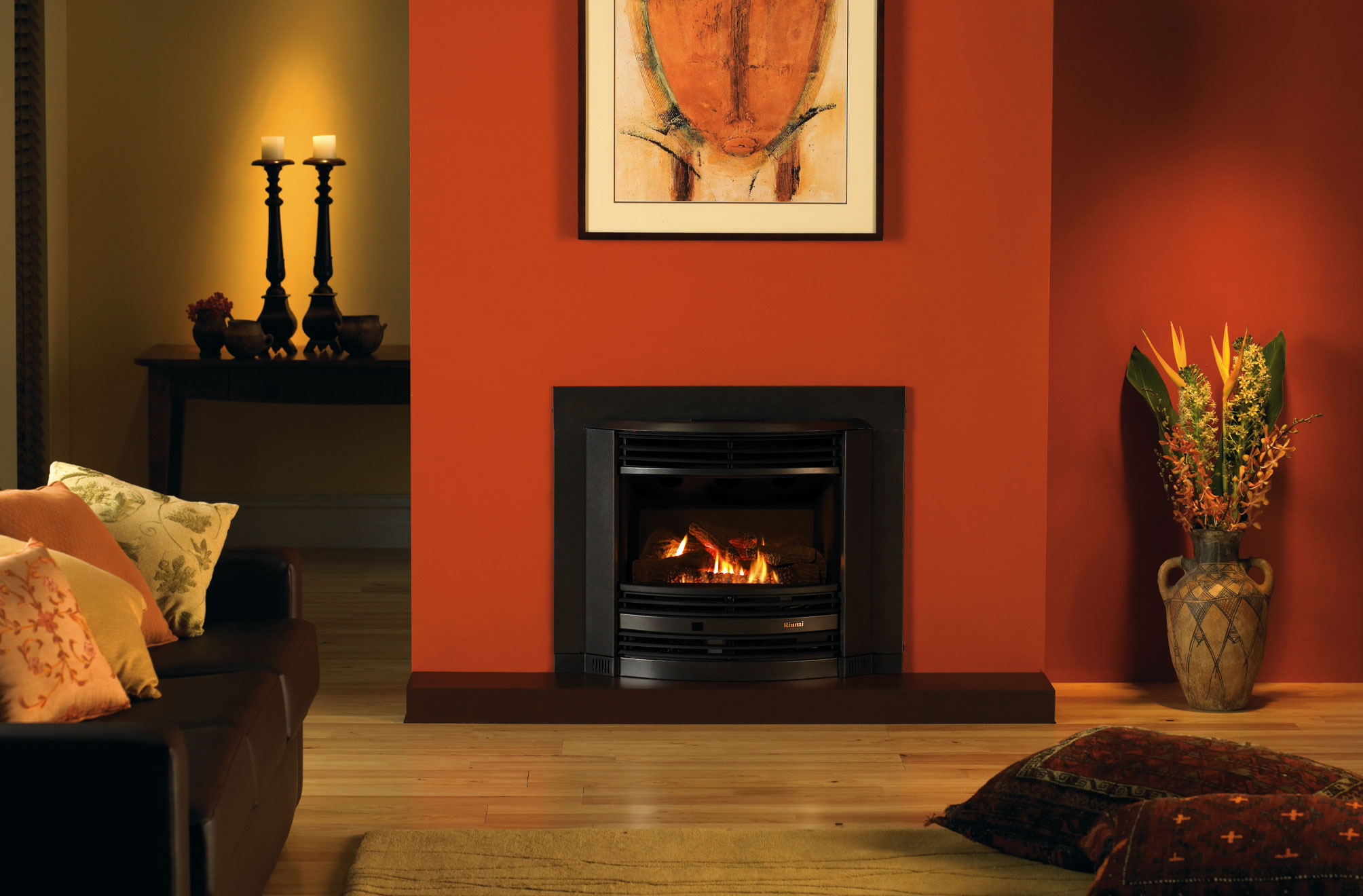

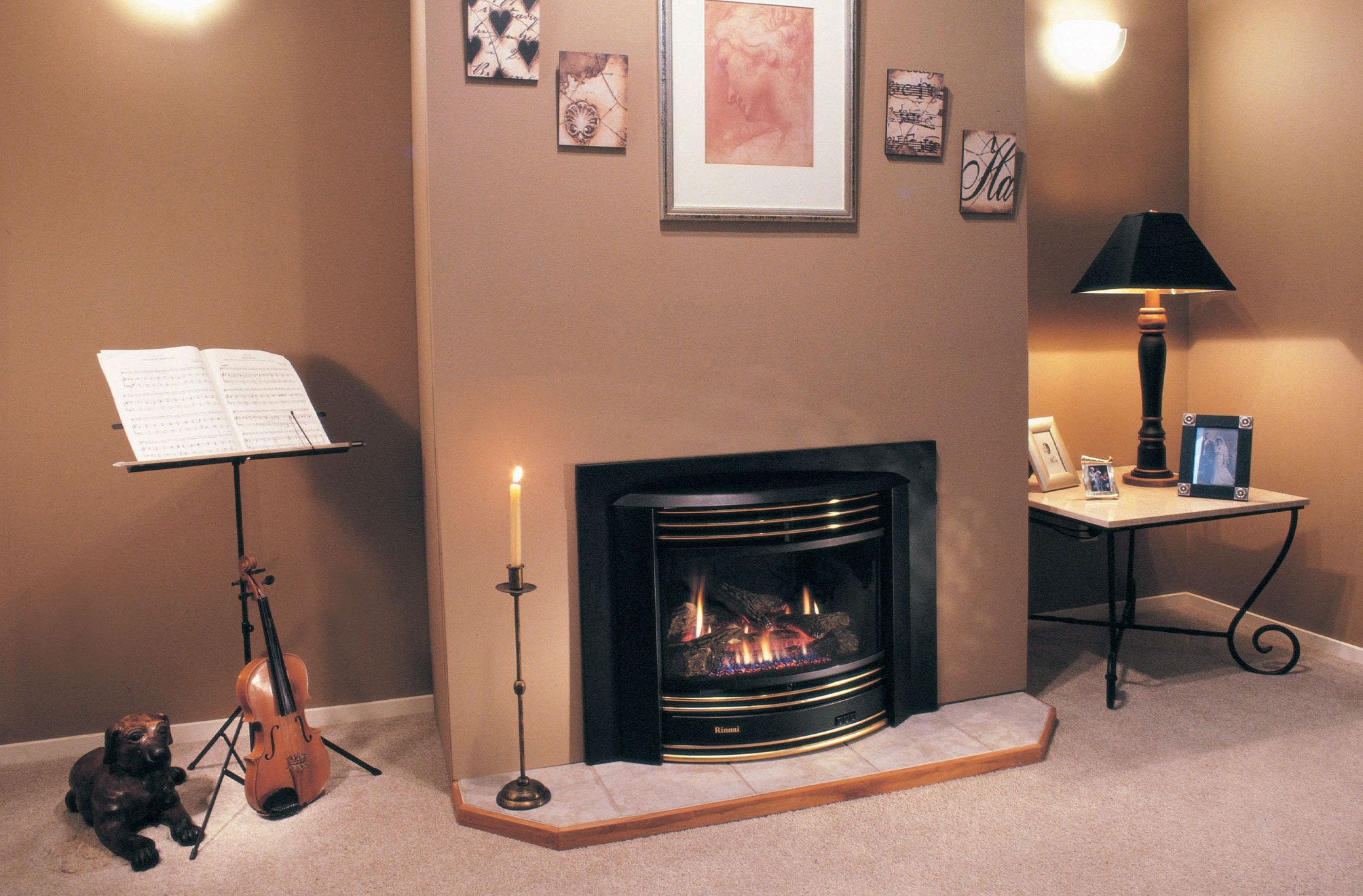

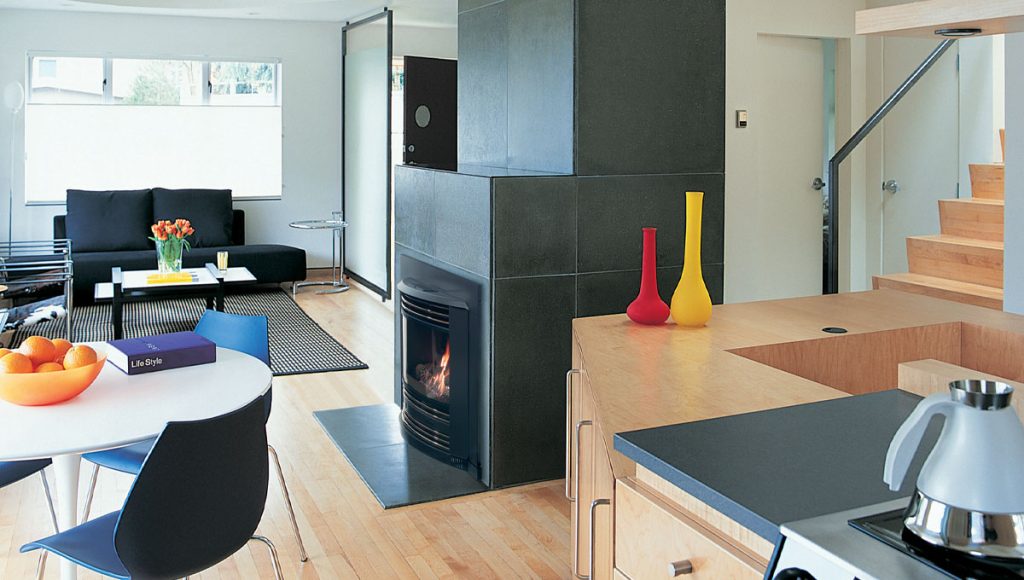

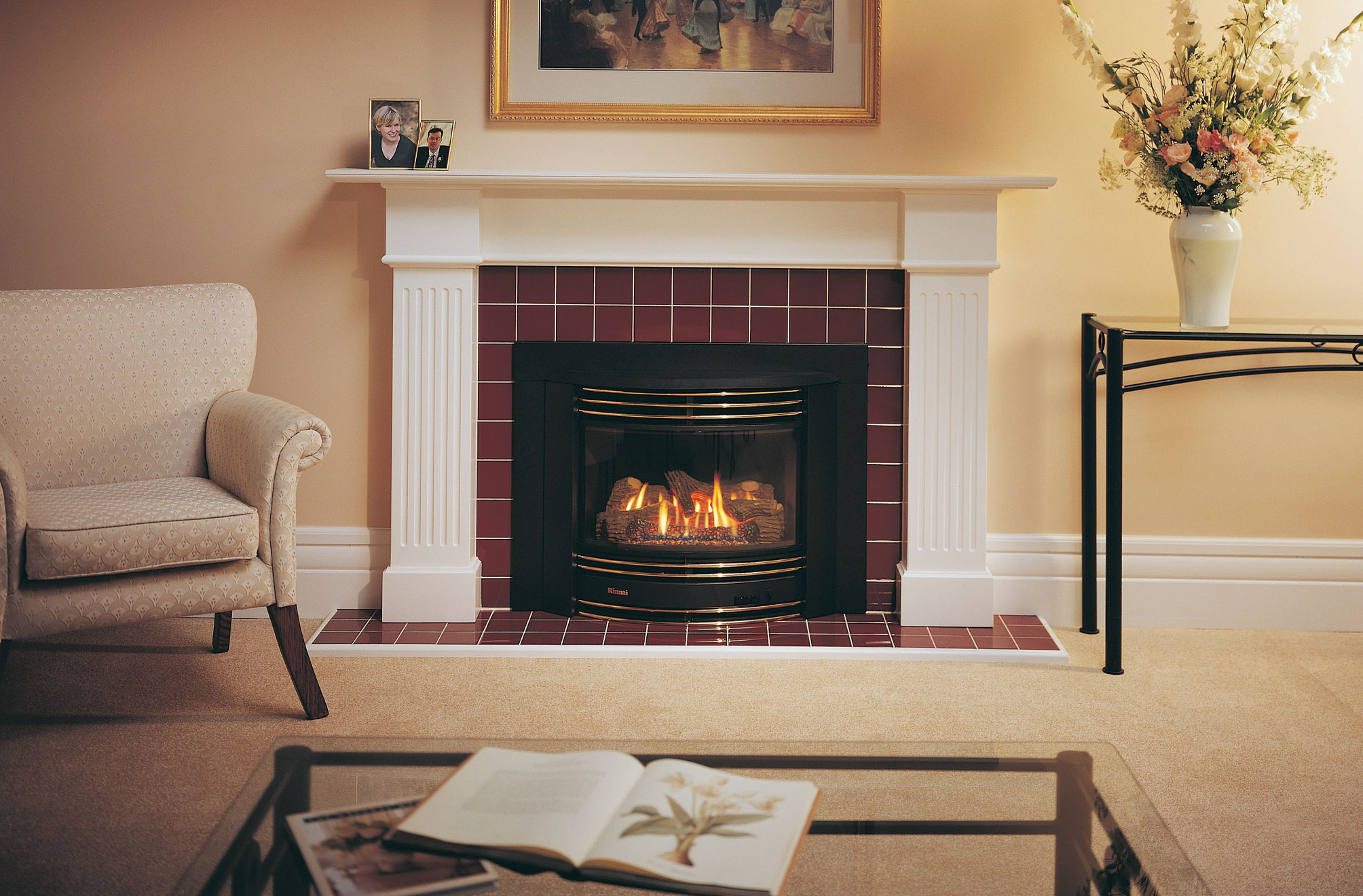

The curved front adds interest and the logset gives an authentic feel to the fire

With the Rinnai Timberflame Radius, you get the authentic glow and heart-warming radiance of a log fire in your home, without ever having to go outside and chop wood.

Two models; eletronic timer remote (ETR) or simple manual push button control (manual model).

Comes in two colour options:

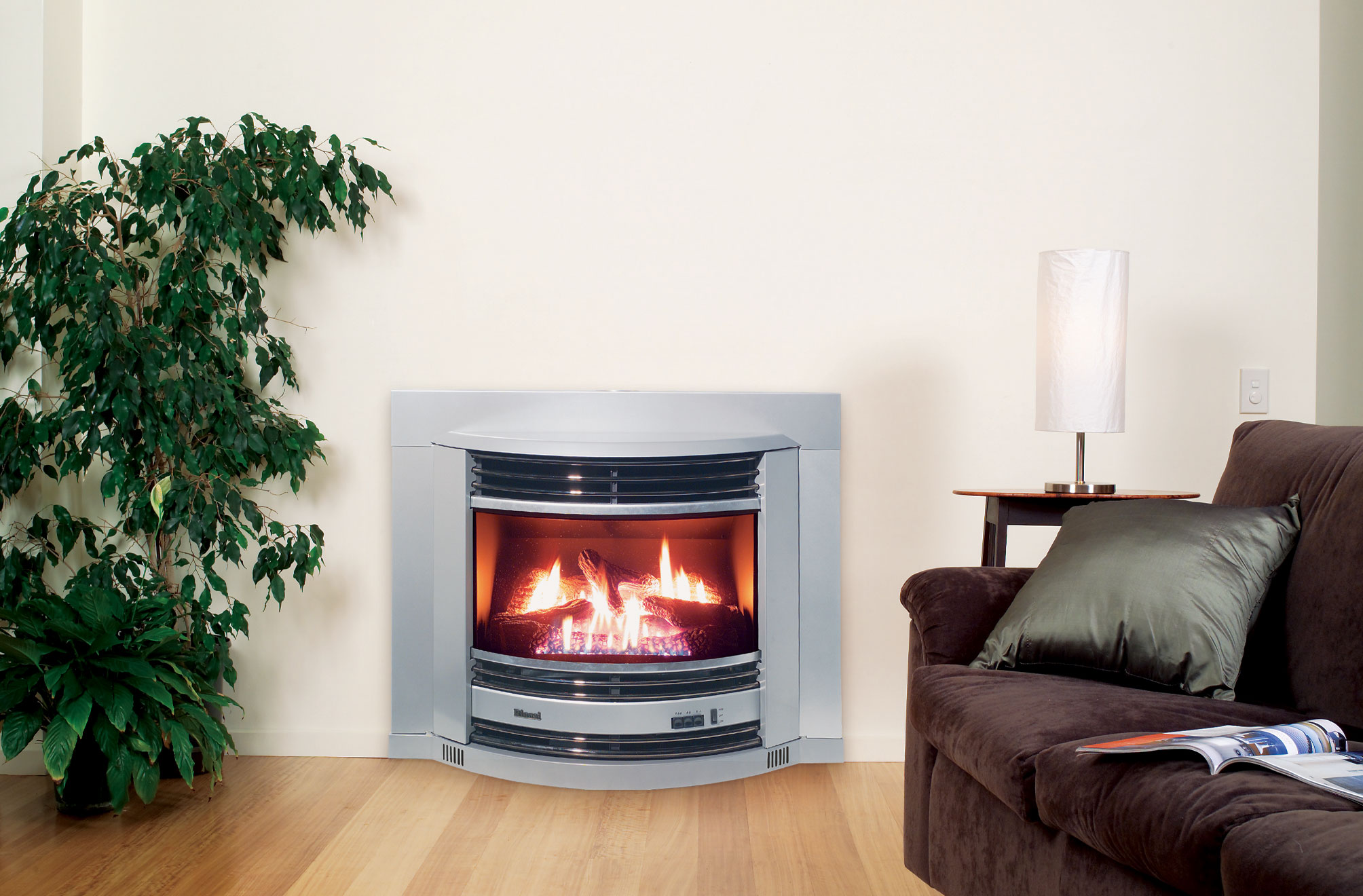

  • Silver with black nickel rods
  • Black with black nickel rods

Option of silver or gold rods that are interchangeable (purchased separately).

Read More

Product Details

Suitable for
Residential heating appliance suitable for living rooms and open plan areas.

Heating area
Can heat up to 84 m2 (depending on where you live in NZ).

Technical Specifications

Input

33

Output ETR

1.6-6.5

Output Manual

3.5-6.6

Efficiency

70.6/72.3

Efficiency 70.6 - ETR, 72.3 - manual model
Models
  • Timberflame Radius ETR - IB35ETR
  • Timberflame Radius Manual - IB35R
Burner

Ceramic logs and ember bed

Combustion system

Yellow flame bunsen multi port burner

Data plate

IB35ETR - bottom right hand side
IB35R - inside right hand side panel

Fan type

Tangential 2-speed, rating 90 W

Gas control

IB35ETR - electronic control valve
IB35R - push button combination control

Gas connection

15 mm copper flare connection

Ignition

Electronic continuous spark discharged to intermittent pilot by remote control (ETR model) or push button method (manual model)

Noise level

53 dB(A)

Power consumption

High 100 W, standby 4 W. Power cord is located lower right hand side of the unit.

Weight

54 kg

Market release

1999

Discontinued
  • Timberflame Radius manual (IB35R) - 2010
  • Timberflame Radius ETR (IB35ETR) - Mar 2014
