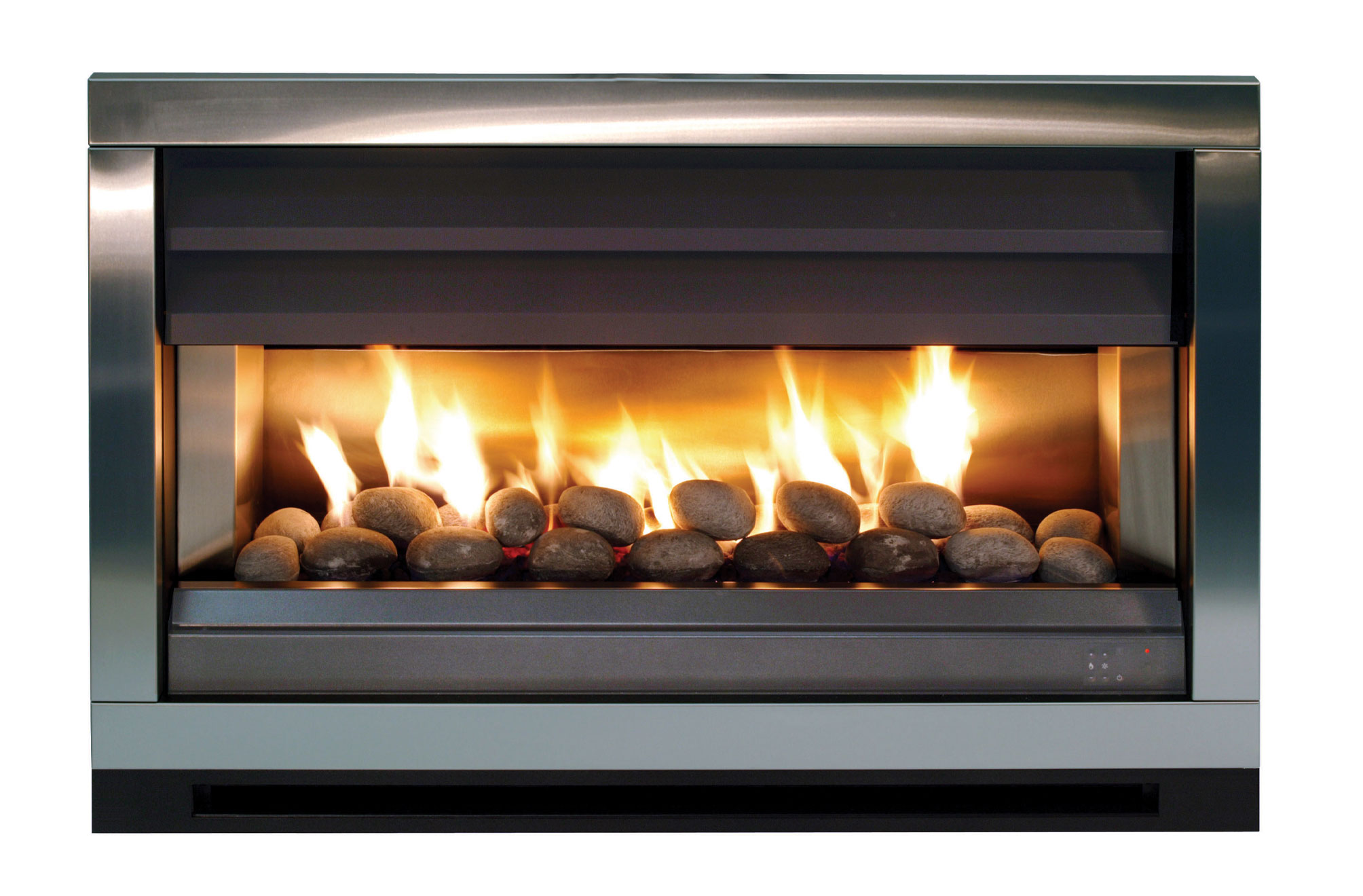

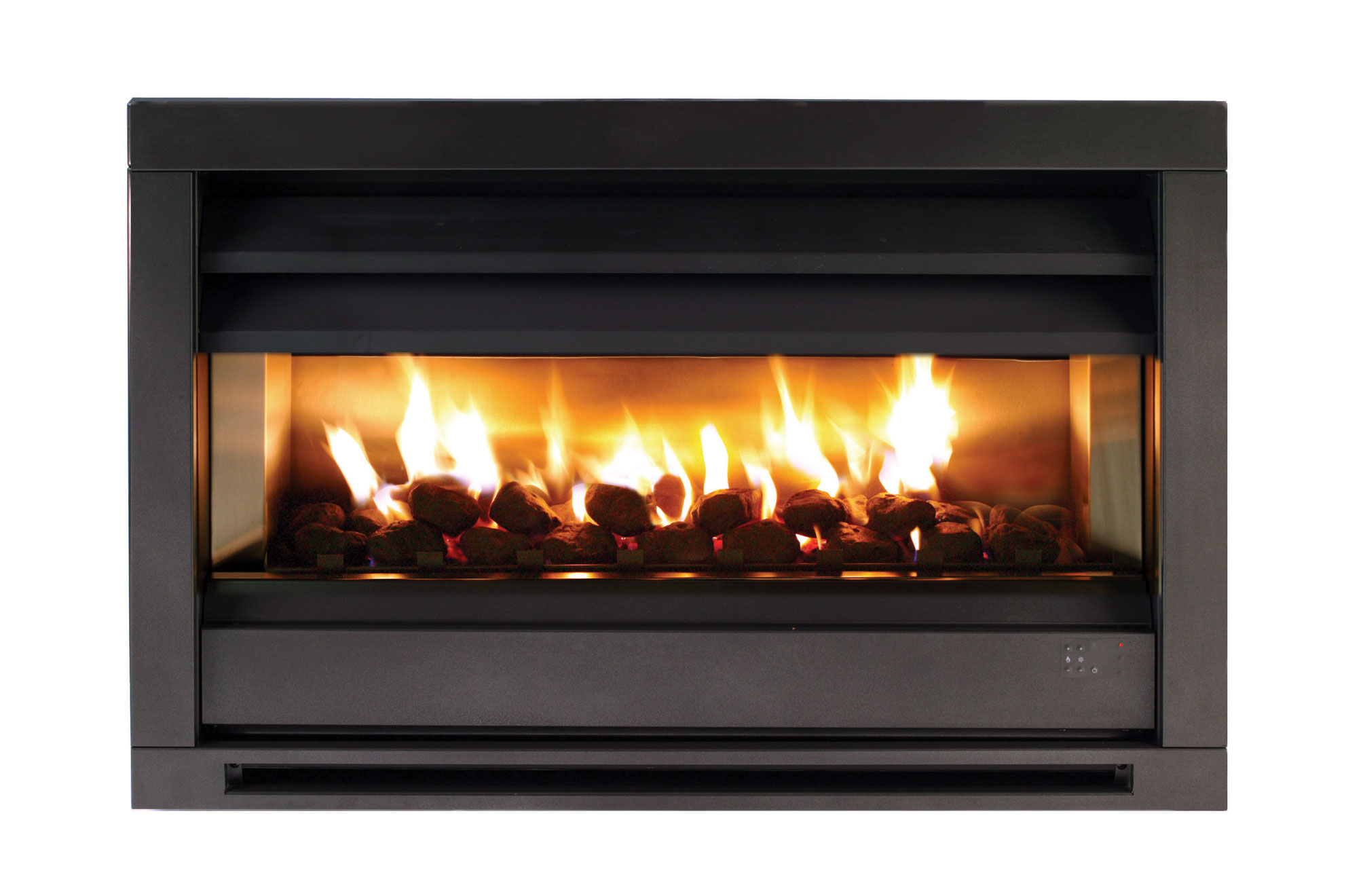

Lumina 800 and 1000 Open Fires

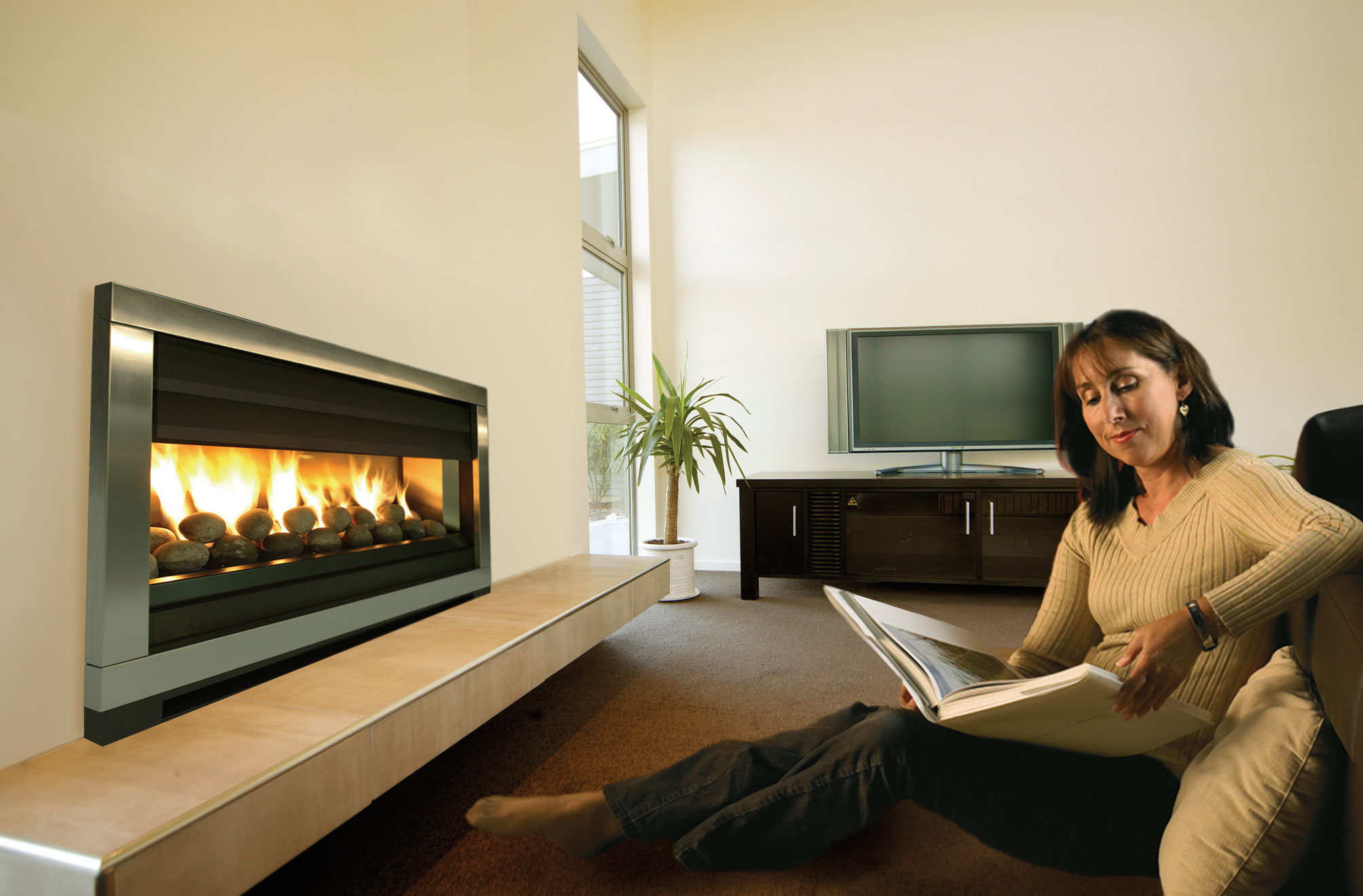

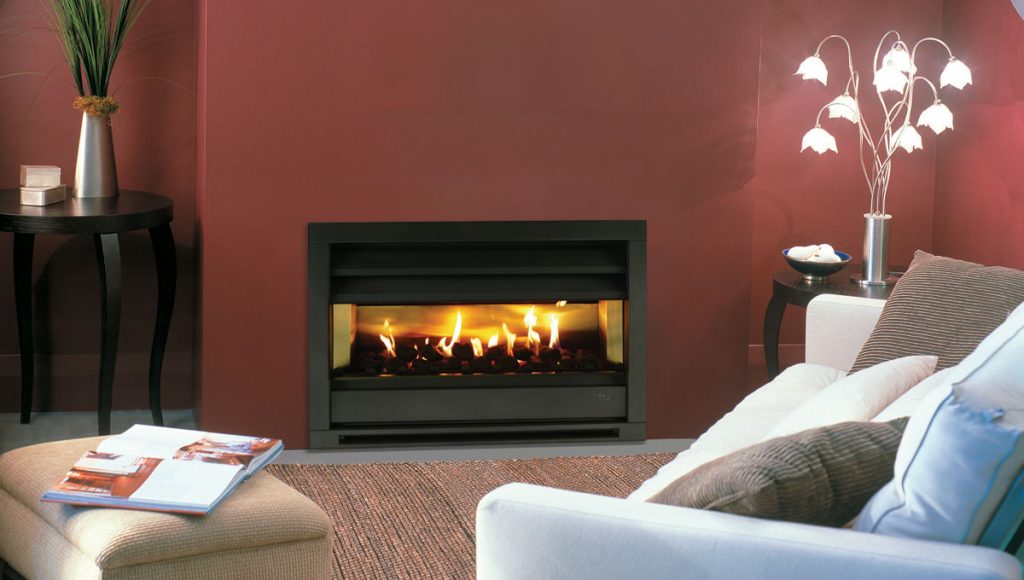

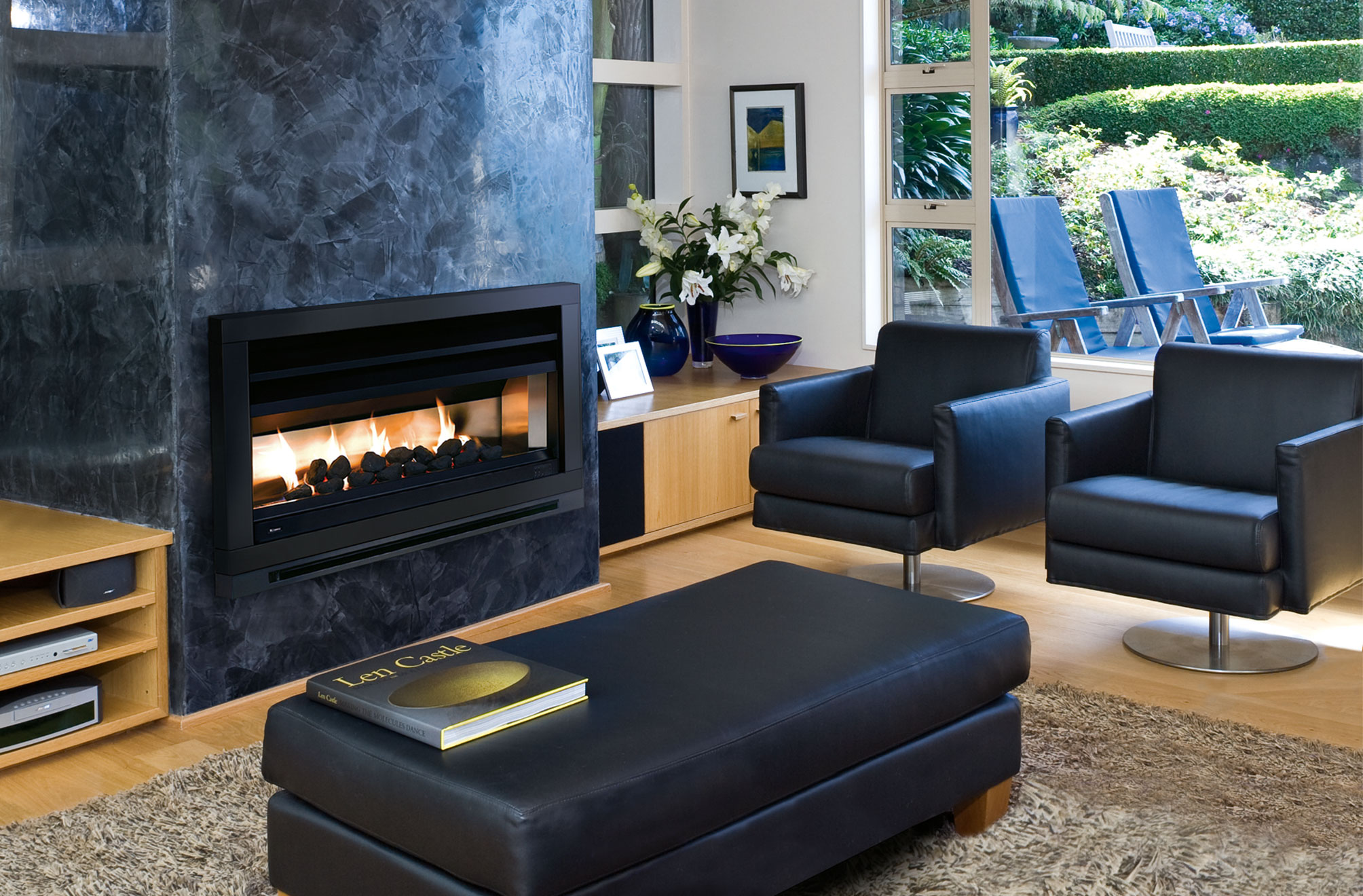

Ideal for living rooms and open plan areas as a secondary heating source. Best suited when renovating or building so the cavity can be constructed to suit the space requirements.

Available in NG or LPG. Gas type specified at the time of purchase.

Lumina 800: 18-33 MJ/h
Lumina 1000: 24-40 MJ/h

• approx. 3.7 kW on high (NG)
• approx. 3.5 kW on high (LPG)

• At least 48 m² in the warm zone (Northland, Akld, Coromandel, BOP, Hawkes Bay)
• At least 42 m² in the medium zone (Nelson & Marlborough area, rest of Nth Island except for the central plateau)
• At least 36 m² in the cool zone (rest of the Sth Island)

Top air discharge

Yellow flame atmospheric Schott Ceramat® main FN pan burner

On the base panel, to the right side of the gas control

Tangential 2-speed, power rating 60 W

Natural draft, Inner ∅200 mm stainless steel, outer ∅250 mm galvanised steel (round top discharge).

½ ” BSPT male union, located left hand side (looking at the fire)

SIT modulating valve

Electronic continuous spark discharge to intermittent pilot by either remote or push button method

42-52 dB(A), fan low to high

High 70 W, low 35 W. Power cord is located lower right hand side of the rear panel.

Overheat thermal cutout switch and flame sensors

800 – 65 kg
1000 – 75 kg

The minimum clearances listed below are measured from the edge of the glass.

• Above 300 mm
• Sides 300 mm (includes side walls)
• In front 1000 mm

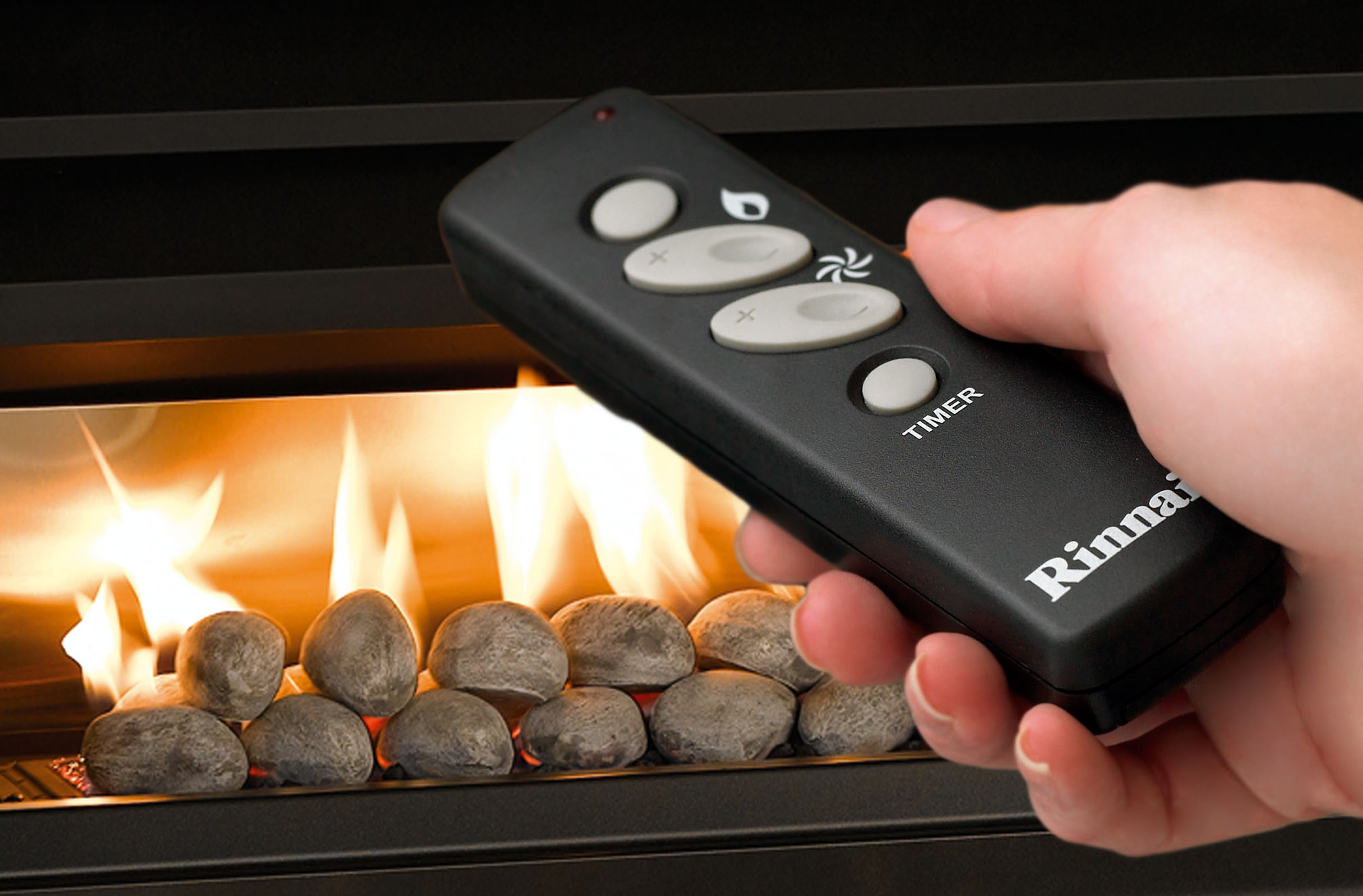

WG0102 – Remote control replacement IR (approx. RRP $230). Batteries: AAA x 4.

2006

Lumina 800 – 2011
Lumina 1000 – Mar 2013
