Symmetry RDV3610

Overview

Discontinued
Discontinued 2011

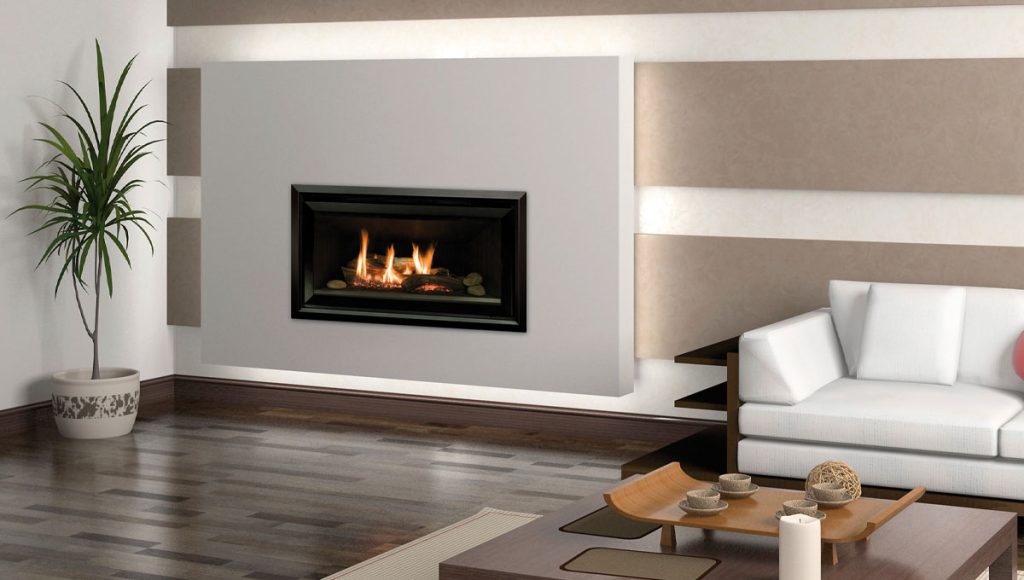

The Rinnai Symmetry RDV3610 is a direct vent inbuilt gas fireplace with a glass front and convection fan, operated with a remote control (7-day programmable timer).

Suitable for
Living rooms and open plan areas. Can heat up to 100 m2 (depending on where you live in NZ).

Recommended for installation into a false (mock) chimney. Not suitable for retrofitting into an existing masonry fireplace.

Read More


Technical Specifications

Input

19-33

Output

4.2-7.5

Efficiency

80

Released

2010


General clearances

The side clearance includes side walls

Combustion method

Ceramic top pan burner

Data plate

Centre front of base panel, behind the service panels

Flue

Direct vent. Inner Ø100 mm, outer Ø170 mm. Fire must be installed with a Rinnai supplied flue system.

Gas connection

½ " BSP male flare

Ignition

Integrated sparker to pilot

Noise level

37-45 dB(A)

Power consumption

High 50 W, standby < 1 W. Electrical connection is to the right hand side of the fire.

Safety devices

Light to pilot, delayed ignition, overheat switch, electronic flame supervision (flame failure), and combustion chamber pressure relief.

Temperature control

Thermostatic, temperature control range 7-32 °C

Weight

60 kg

ESS: Supplier Declaration of Compliance

Declaration number - 11154202102

Market release

2010

Discontinued

Late 2011, replaced by the Symmetry RDV3611
