Neo Range (RIB2310 RIB2311)

Overview

Discontinued
Discontinued March 2018 and replaced by the Neo range with simple remote

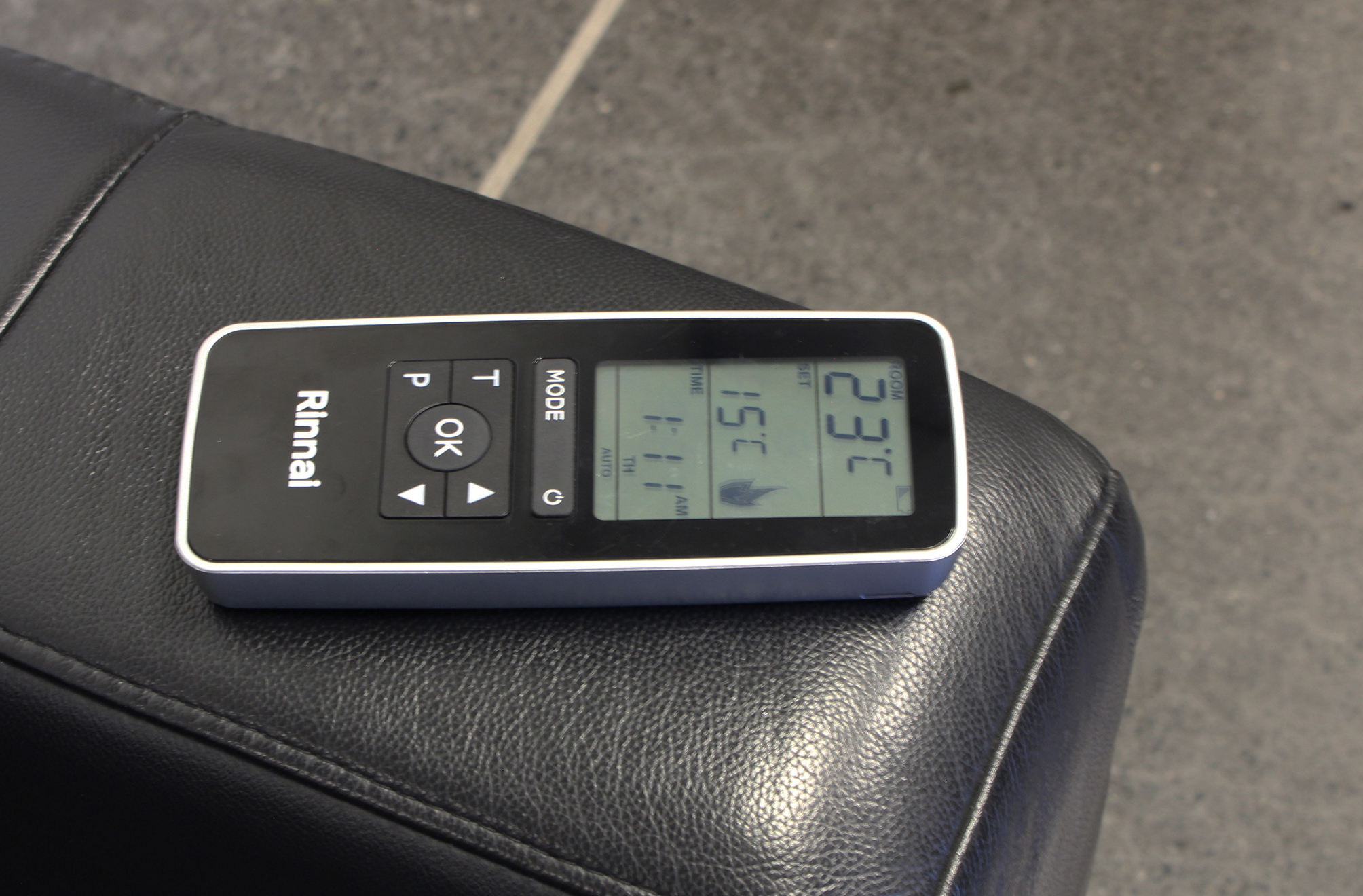

The Rinnai Neo gas fire range combines modern good looks with the latest advances in technology. A choice of framing options available to individualise your fireplace. This range is controlled using the electronic timer remote wireless controller.

Four options in the range:

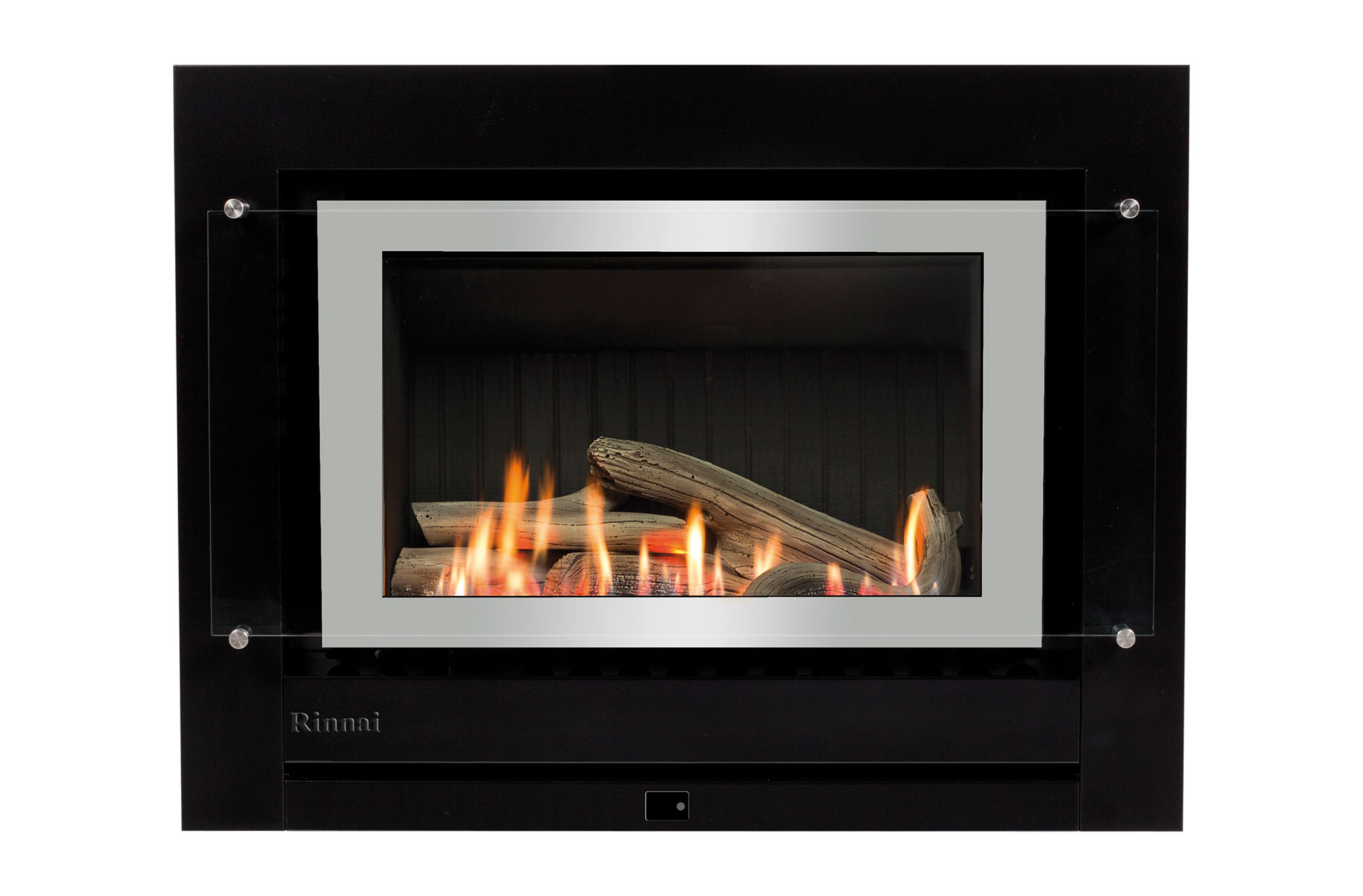

  • Neo Inbuilt

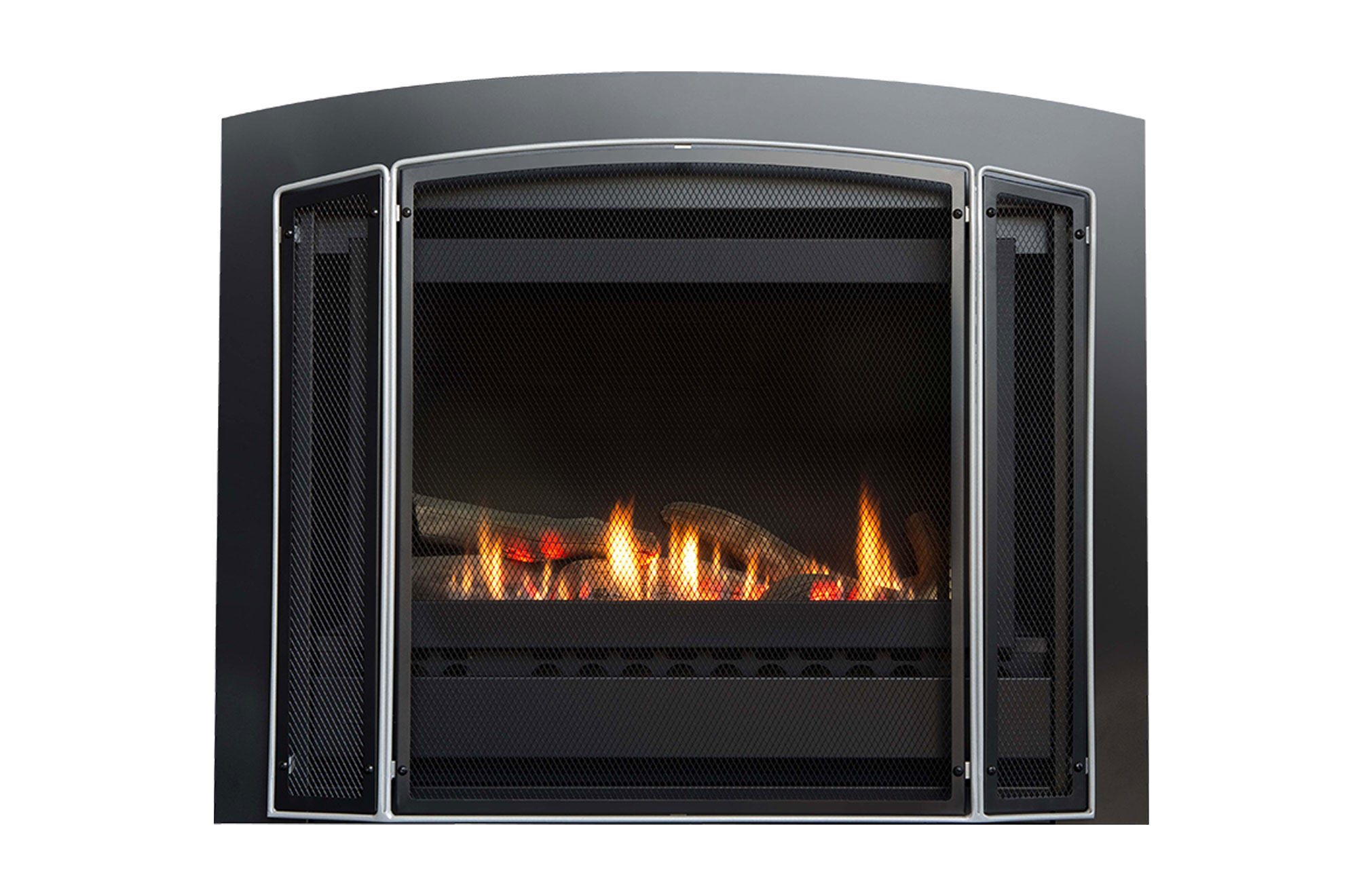

  • Neo Inbuilt Premium Classic

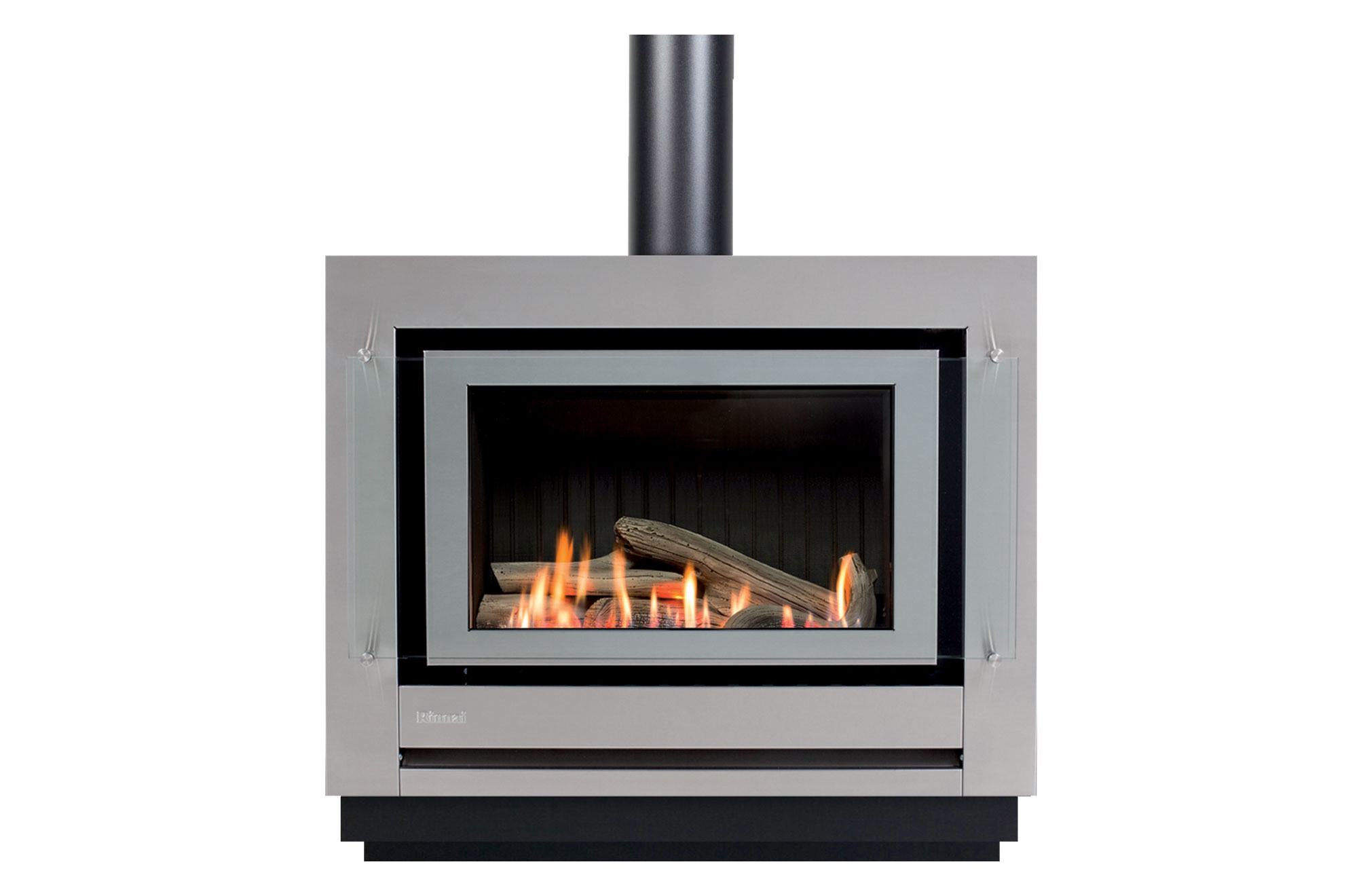

  • Neo Freestanding Console
  • Neo Freestanding Plinth

Read More

Product Details

Suitable for living rooms and open plan areas. Heating areas 65-112 m2 (depending on gas type and where you live in NZ).

Technical Specifications

Input

NG = 14-30 MJ/h
LPG = 14-27 MJ/h

Output

NG = 3.24-6.94 kW
LPG = 2.98-6.04 kW

Efficiency

80%

Data plate

Inside the appliance on the front left hand side

Flue - mock chimney and freestanding

Natural draft flue. Must be installed with a Rinnai flue system. Mock chimney installations require a Rinnai zero clearance box and flue kit. Flue dimensions; outer Ø150 mm, inner Ø100 mm.

Flue - masonry

Must be installed with a Rinnai flexiliner flue Ø100 mm

Gas connection

½ " BSPT, the gas supply terminates inside the fire at the front lower right hand side of the appliance

Ignition

Continuous spark electronic ignition

Noise level

37-45 dB(A)

Power consumption

High 50 W, standby less than 3 W.  A 1.5 m power is supplied with a 3-pin plug on the rear of the fire.

Safety devices

Overheat switch, electrical fuse, flame failure sensing system, and power failure protection

Weight

60 kg

Market release

2011

Discontinued

March 2018, superseded by the Neo range with simple remote

Compliance

Energy Safety Supplier Declaration of Compliance: Declaration number - 123912011
