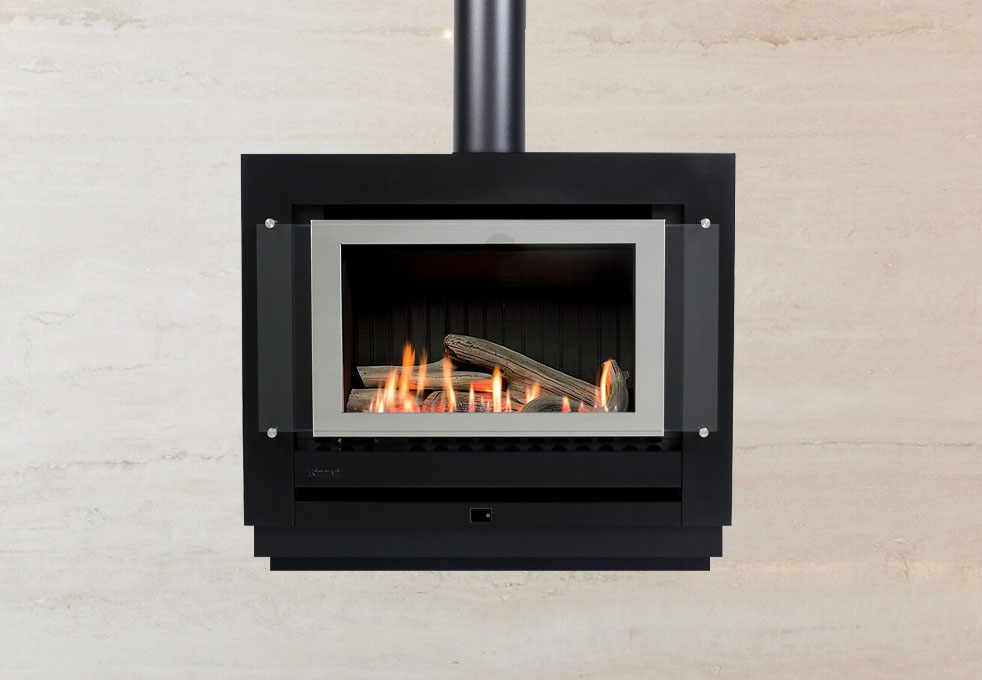

Neo Freestander




Console model is $5299. Price includes the engine, outer kit, and frame—ordered separately. Indicative pricing only, price will vary according to framing option selected.

Designed and made in New Zealand

Combining good looks with technology and a realistic looking log set.

A modern take on the freestanding fireplace with two models to choose from, the Neo Plinth or the Neo Console. A choice of framing options are also available.

With the Neo's advanced design, you'll require less energy to heat your room, which means lower running costs.

Temperature control
Back-to-basics simple infra-red remote makes operation easy and stress-free, or upgrade to Wi-Fi capability with our Wi-Fi module retrofit kit, part number R7000 (RRP $220 plus installation). This will need to be fitted by a licensed gasfitter.

Read More

Design Your Fire


Product Details

Suitable for living rooms and open plan areas.

Heating areas (up to)
- Upper North Island: 112 m2
- Central and lower North Island: 77 m2
- South Island: 67 m2

Installation consideration
The Neo draws air for combustion from the room. Adequate ventilation must be calculated by the gasfitter as per AS/NZS 5601.1.

Technical Specifications







Input and output will vary according to gas type and flue configuration
Gas type

Available for Natural Gas or LPG, specify at the time of purchase.

Data plate

Inside the appliance on the front left hand side


Inner Ø100 mm, outer Ø150 mm. Appliance must be installed with a Rinnai flue system.

Gas connection

½ " BSPT flexi. The gas supply terminates inside the heater at the lower front RHS of the appliance.


Continuous spark electronic ignition

Noise level

37-45 dB(A)

Power consumption
  • High 50 W
  • Standby < 3 W
Safety devices

Overheat switch, electrical fuse, and flame failure sensing system

Temperature control

Operated using a basic infra-red remote, or for more features such as timers and thermostatic control, by using a Wi-Fi module (purchased separately) and using the Rinnai Wi-Fi fireplace controller app.

  • engine - 60 kg
  • freestanding kit 20-21 kg
General clearances

The minimum clearances listed below are measured from the edge of the inner glass.

  • Above - 400 mm
  • Sides - 400 mm (includes side walls)
  • In front - 1000 mm
  • Behind - 75 mm
  • Viewable glass dimensions 500 x 295 mm


Energy Safety Supplier Declaration of Compliance: Declaration number - 18792201810

Market release

March 2018


Yes. The majority of modern gas fires have electronic ignition and safety components that require electricity. For customers concerned with power outages, there are commercially available battery backup systems. One provider is Helio ( who supply systems specifically designed for use with gas space heaters and water heaters.

For flues terminating through the roof there is a requirement for how far the flue terminal needs to be from the building. This clearance is required to ensure products of combustion are cleared adequately. Rinnai recommends the flue cowl should have a 500 mm clearance from any part of the building.

For more information, refer to the installation manual of the gas fireplace you are interested in – available on our website.

For reliable operation, Rinnai gas fires should be serviced every two years (including inspection of the flue system). If they are in a particularly dusty environment or subject to excess lint (for example dog hair, or where there are newly laid carpets) then annual servicing is recommended.

If you’d like to schedule a service, just give us a call 0800 RINNAI (0800 746 624) or fill in our form online.
